Releu 12VDC, 12V, 3A, SPST-NO, PCJ-112D3M, 301Y, TE CONNECTIVITY

Denumire Produs: PCJ-112D3M, 301Y, TE CONNECTIVITY

COD: 51506

Preț: 19,51 RON

(Prețul include TVA)

In stoc

Adaugati la lista de favorite

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

TE CONNECTIVITY - PCJ-112D3M,301Y - RELAY, PCB, SPNO, 12VDC

RELAY, PCB, SPNO, 12VDC
Relay Type: General Purpose
Coil Voltage VDC Nom: 12V
Contact Current Max: 3A
Contact Voltage AC Nom: 240V
Coil Resistance: 720ohm

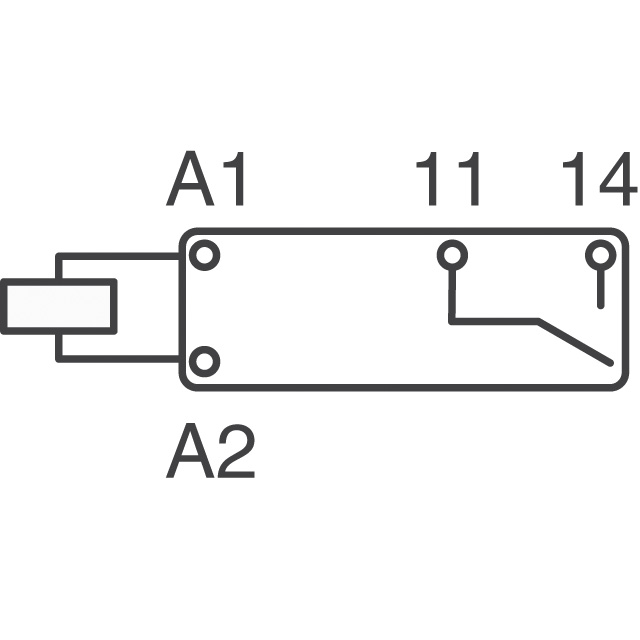

Contact Configuration: SPNO
Coil Type: DC, Monostable
Nom Operating Power: 200mW
Relay Mounting: PCB

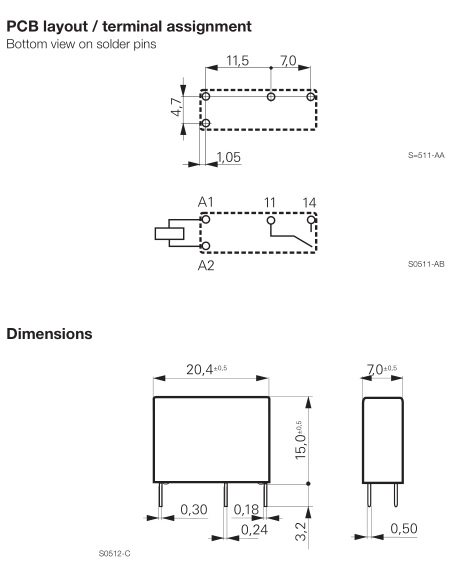

External Height: 15mm
External Width: 20.4mm
External Depth: 7mm
Approval Bodies: VDE
Approval Category: UL Recognised
Contact Current AC Max: 5A
Contact Material: AgNi
Contact Resistance: 100mohm
Contact Voltage AC Max: 400V
DC Coil Power: 200mW
Dielectric Strength VAC: 4000VAC
Dielectric Voltage Coil to Contact: 4000VAC
Dielectric Voltage Contact to Contact: 750VAC
External Length / Height: 15mm
Insulation Resistance: 1000Mohm
Mechanical Life: 5,000,000 Operations
Mounting Type: PCB
Must Actuate Voltage: 9VDC
Must Release Voltage: 0.6VDC
No. of Mechanical Operations: 5000000
No. of Poles: 1
Operating Temperature Max: 90°C
Operating Temperature Min: -40°C
Operating Time: 10ms
Release Time: 4ms
Series: PCJ
Switching Power Max: 750VA

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
