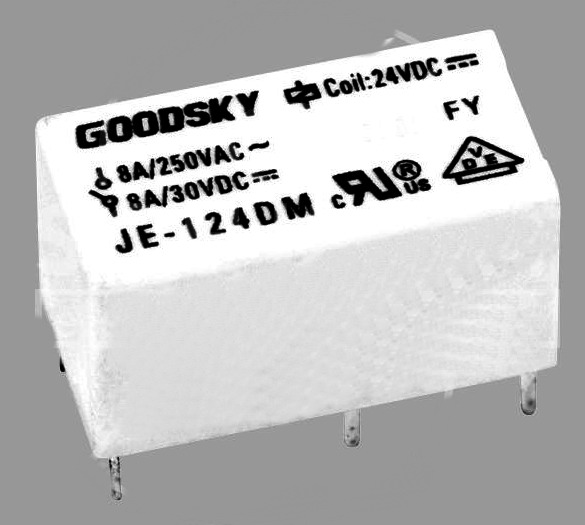

JE124D
Relay SPDT 5A 24V 2880R
Sensitivity coil 200mW
• 4kV dielectric strength coil/contact
• Optimized height of 10,5mm

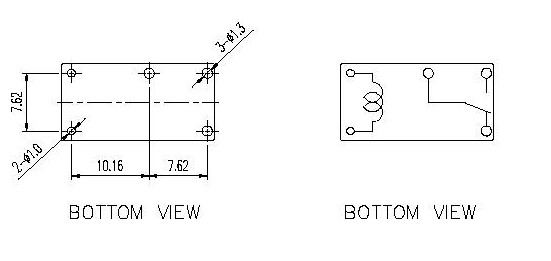

DIM: 10 X 20 X 10.5MM
Technical Specifications
Contact JE_D: SPDT
Contact Material: Ag Alloy
Rated Current JE_D: 5A
Max. Switching Current JE_D: 5A
Max. Switching Voltage: 250V AC / 30V DC
Max. Switching Power
JE_D: 1250VA / 150W
Operate/Release Time: 8/4ms
Testing Voltage
Coil/Contact: 4000V AC
Contact/Contact: 1000V AC
Lifetime
Mechanical: 1x107 Operations
Electrical: 1x105 Operations
Operating Temperature: -40...+85C
Weight Approx.: 6GR
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
