RESISTOR, 1206, 0.R, 1%

•  RESISTOR, 1206, 0.R, 1%
• Resistance: 0.ohm
• Resistance Tolerance: ± 1%
• Power Rating: 250mW
• Voltage Rating: 200V
• Temperature Coefficient: -1500ppm/°C to +600ppm/°C
• Resistor Element Material: Thick Film

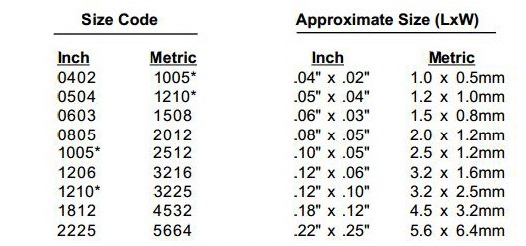

• Resistor Case Style: 1206 [3216 Metric]
• Resistor Mounting: SMD
• External Depth: 0.65mm
• External Length / Height: 3.2mm
• External Width: 1.7mm
• Full Power Rating Temperature: 70°C
• Lead Spacing: 0.4mm
• No. of Pins: 2
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +125°C
• Package / Case: 1206
• Series: LRC02P
• Temperature Coeff. +: 600ppm/°C
• Temperature Coeff. -: 1500ppm/°C
• Tolerance +: 1%
• Tolerance -: 1%
