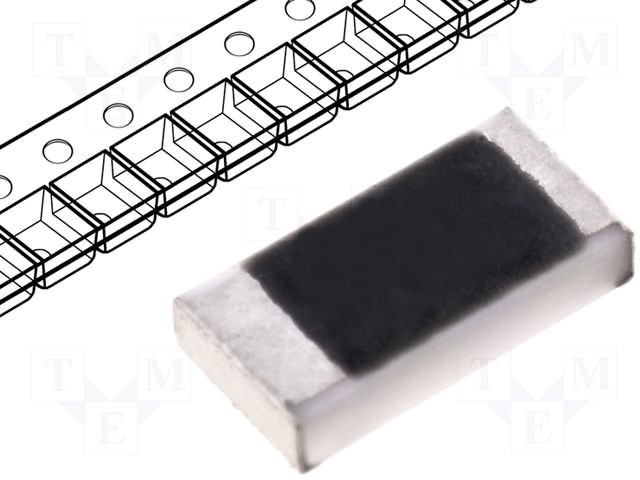

YAGEO (PHYCOMP) - RL1206FR-7W0R22L - RESISTOR, 1206, 0.22R, 1%
- RESISTOR, 1206, 0.22R, 1%
- Resistance: 0.22ohm
- Resistance Tolerance: ± 1%
- Power Rating: 250mW
- Voltage Rating: 200V
- Temperature Coefficient: -1500ppm/°C to +600ppm/°C
- Resistor Element Material: Thick Film

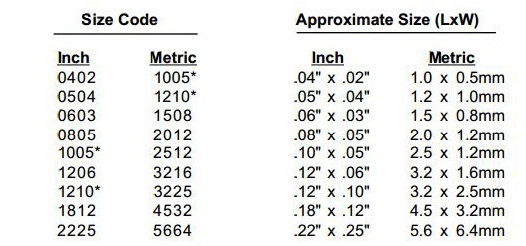

- Resistor Case Style: 1206 [3216 Metric]
- Resistor Mounting: SMD
- External Depth: 0.65mm
- External Length / Height: 3.2mm
- External Width: 1.7mm
- Full Power Rating Temperature: 70°C
- Lead Spacing: 0.4mm
- No. of Pins: 2
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Package / Case: 1206
- Series: LRC02P
- Temperature Coeff. +: 600ppm/°C
- Temperature Coeff. -: 1500ppm/°C
- Tolerance +: 1%
- Tolerance -: 1%
