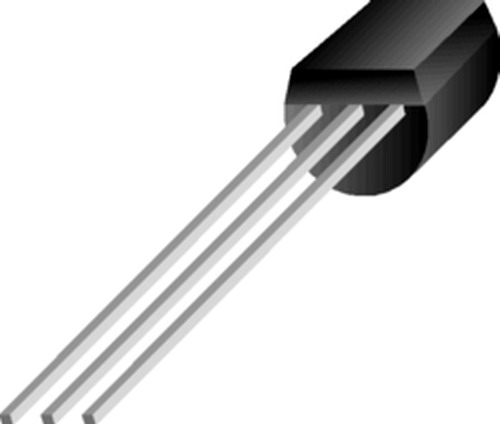

MPSA44 Transistor NPN 400V 0.3A 625mW 20MHz TO92 Manufacturer: DIOTEC
Original symbol: MPSA44.126
2SD1350A, (2SD593)
- TRANSISTOR, NPN, TO-92
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 400V
- Power Dissipation Pd: 625mW
- DC Collector Current: 300mA
- DC Current Gain hFE: 50
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: TO-92
- No. of Pins: 3
- Collector Emitter Voltage Vces: 750mV
- Continuous Collector Current Ic Max: 300mA
- Current Ic @ Vce Sat: 50mA
- Current Ic Continuous a Max: 300mA
- Current Ic hFE: 100mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 20MHz
- Hfe Min: 40
- No. of Transistors: 1
- Package / Case: TO-92
- Pin Configuration: b
- Power Dissipation Pd: 625mW
- Power Dissipation Ptot Max: 625mW
- Termination Type: Through Hole
- Voltage Vcbo: 500V
