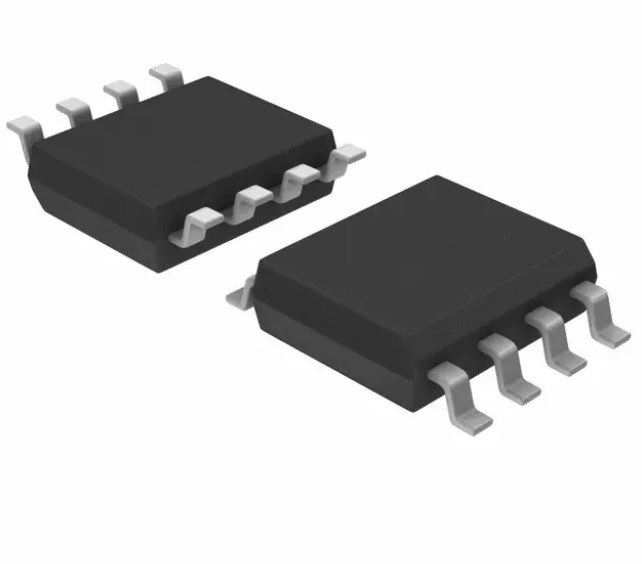

LM2903D, Analogue Comparator, Dual, Precision, ON Semiconductor

Denumire Produs: LM2903DT, ON Semiconductor

COD: 66451

Preț: 4,85 RON

(Prețul include TVA)

Stoc Limitat

Adaugati la lista de favorite

Cantitate:

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

LM2903D, Analogue Comparator, Dual, Precision, 2, 1.5 µs, ± 1V to ± 18V, SOIC, 8 Pins

Manufacturer: ON Semiconductor

Product Category: Analog Comparators

RoHS: Details

Mounting Style: SMD/SMT

Package/Case: SOIC-8

Comparator Type: General Purpose

Number of Channels: 2 Channel

Output Type: Open Collector

Output Current per Channel: 16 mA

Ib - Input Bias Current: 250 nA

Vos - Input Offset Voltage: 7 mV

Supply Voltage - Max: 36 V

Supply Voltage - Min: 2 V

Operating Supply Current: 1 mA

Response Time: 1.5 us

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Packaging: Tube

Height: 1.5 mm (Max)

Length: 5 mm (Max)

Product: Analog Comparators

Series: LM2903V

Supply Type: Single, Dual

Technology: Bipolar

Type: Low Offset Comparator

Width: 4 mm (Max)

Brand: ON Semiconductor

Shutdown: No Shutdown

Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V

GBP - Gain Bandwidth Product: -

Maximum Dual Supply Voltage: +/- 18 V

Minimum Dual Supply Voltage: 1 V

Operating Supply Voltage: 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V

Pd - Power Dissipation: 570 mW

Reference Voltage: Yes

Vcm - Common Mode Voltage: Negative Rail - 0.3 V to Positive Rail + 3.6 V

Voltage Gain dB: 106.02 dB

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
