IRFP064N, Tranzistor N-MOSFET 55V 98A 150W TO247AC, RoHS
Producator: INTERNATIONAL RECTIFIER

 MOSFET, N, 55V, 98A, TO-247AC

• Transistor Polarity: N Channel
• Continuous Drain Current Id: 98A
• Drain Source Voltage Vds: 55V
• On Resistance Rds(on): 8mohm
• Rds(on) Test Voltage Vgs: 10V
• Threshold Voltage Vgs: 4V
• Power Dissipation Pd: 150W

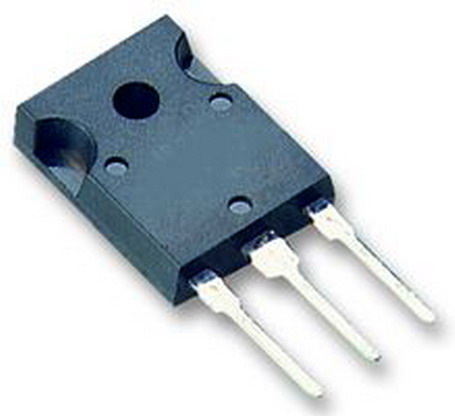

• Transistor Case Style: TO-247AC
• No. of Pins: 3
• Operating Temperature Max: 175°C
• Current Id Max: 110A
• Current Temperature: 25°C
• Full Power Rating Temperature: 25°C
• Junction to Case Thermal Resistance A: 1°C/W
• Lead Spacing: 5.45mm
• No. of Transistors: 1
• Operating Temperature Min: -55°C
• Operating Temperature Range: -55°C to +175°C
• Pulse Current Idm: 390A
• Termination Type: Through Hole
• Voltage Vds Typ: 55V
