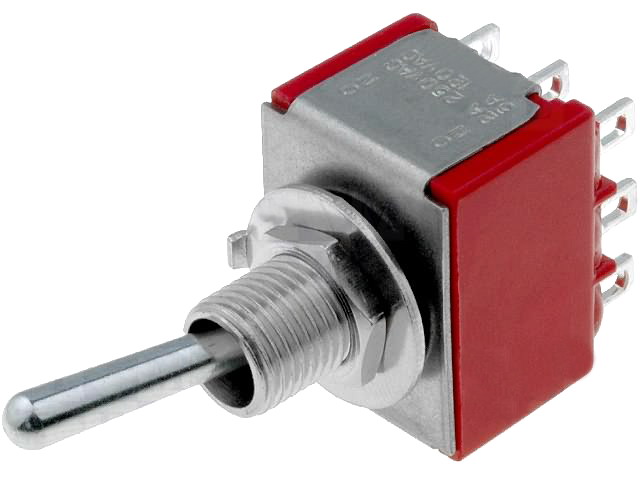

7301SYZQE Intrerupator:basculant; 3PDT; Mod comutare:ON-OFF-ON
 Producator: C&K COMPONENTS Simbol original: 7301SYZQE

Tip intrerupator basculant

Temperatura de lucru -30...85C
Terminale cu ochiuri
Inaltime maneta 11 mm
Diametru orificiu de montaj 6,35 mm

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
