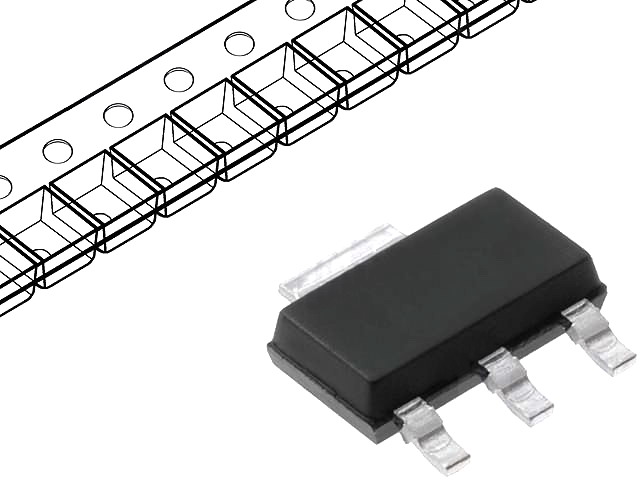

INFINEON - BSP129 - MOSFET, N, SOT-223

•   MOSFET, N, SOT-223
• Transistor Polarity: N Channel
• Continuous Drain Current Id: 120mA
• Drain Source Voltage Vds: 240V
• On Resistance Rds(on): 20ohm
• Rds(on) Test Voltage Vgs: 10V
• Threshold Voltage Vgs Typ: -1.4V
• Power Dissipation Pd: 1.7W
• Operating Temperature Min: -55°C
• Operating Temperature Max: 150°C
• Transistor Case Style: SOT-223
• No. of Pins: 4
• Current Id Max: 120mA
• Current Temperature: 25°C
• External Depth: 7.3mm
• External Length / Height: 1.7mm
• External Width: 6.7mm
• Full Power Rating Temperature: 25°C
• Junction Temperature Tj Max: 150°C
• Junction Temperature Tj Min: -55°C
• No. of Transistors: 1
• Operating Temperature Range: -55°C to +150°C
• Package / Case: SOT-223
• Power Dissipation Pd: 1.7W
• Power Dissipation Pd: 1.7W
• Power Dissipation Ptot Max: 1.7W
• Pulse Current Idm: 480mA
• SMD Marking: BSP129
• Tape Width: 12mm
• Termination Type: SMD
• Voltage Vds Typ: 240V
