Furnizor: ATMEL

Cod piesa : ATMEGA168-20AU

RoHS :  Da
Descriere

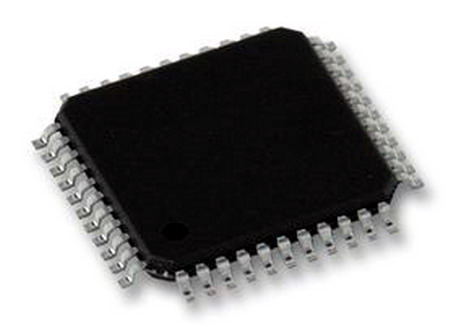

8BIT 16K FLASH MCU, TQFP32, 168
Base Number:168
EEPROM Memory Size:512Byte
RAM Memory Size:1KB
No. of Timers:3
No. of PWM Channels:6
Digital IC Case Style:TQFP
Operating Temperature Range:-40C to +85C
No. of Pins:32
Max Operating Temperature:85C
Min Temperature Operating:-40C
Case Style:TQFP
Clock Frequency:20MHz
Flash Memory Size:16KB
IC Generic Number:168
Interface Type:I2C, SPI, USART
Logic Function Number:168
Max Supply Voltage:5.5V
Memory Size:16 K
Memory Type:FLASH
Microprocessor/Controller Features:High Performance, Low Power AVR® 8-Bit Microcontroller, Advanced RISC Architecture, 4/8/16K Bytes of In-System Self-Programmable Flash (ATmega48/88/168), Optional Boot Code Section with Independent Lock Bits, 256/512/512 Bytes EEPROM (ATmega48/88/168)
Min Supply Voltage:2.7V
No. of ADC Inputs:8
No. of Bits:8
No. of External Interrupts:26
No. of I/O Lines:35
Packaging Type:Peel Pack
RAM Size:1024Byte
Series:ATMEGA
Termination Type:SMD
