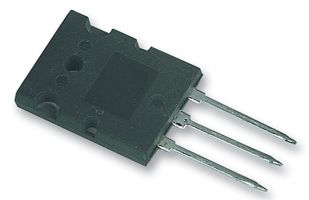

2SC5200, NPN, 250V, 17A, 30MHz, ON SEMICONDUCTOR

Denumire Produs: 2SC5200OTU, ON SEMICONDUCTOR

COD: 79026

Preț: 34,00 RON

(Prețul include TVA)

Stoc Limitat

Adaugati la lista de favorite

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Manufacturer: ON Semiconductor

Product Category: Bipolar Transistors - BJT

RoHS: Details

Mounting Style: Through Hole

Package/Case: TO-264-3

Transistor Polarity: NPN

Configuration: Single

Collector- Emitter Voltage VCEO Max: 230 V

Collector- Base Voltage VCBO: 230 V

Emitter- Base Voltage VEBO: 5 V

Maximum DC Collector Current: 15 A

Gain Bandwidth Product fT: 30 MHz

Minimum Operating Temperature: - 50 C

Maximum Operating Temperature: + 150 C

Series: 2SC5200

Height: 26 mm

Length: 20 mm

Width: 5 mm

Brand: ON Semiconductor / Fairchild

DC Collector/Base Gain hFE Min: 80

Pd - Power Dissipation: 150000 mW

Product Type: BJTs - Bipolar Transistors

The 2SC5200OTU is a 250V NPN Epitaxial Silicon Transistor features high current capability and high power dissipation. Suitable for high fidelity audio output amplifier and general purpose power amplifier applications. This product is general usage and suitable for many different applications.

Excellent gain linearity for low THD

Complement to the 2SA1943/FJL4215

Wide SOA for reliable operation

High power dissipation (150W)

High frequency (30MHz)

High voltage (VCEO = 250V)

Aplicaţii

Audio, Signal Processing
