IDW100E60, Dioda, 150A, 600V, INFINEON

Denumire Produs: IDW100E60, INFINEON

COD: 72532


Preț: 19,90 RON

(Pretul include TVA)
Stoc Limitat

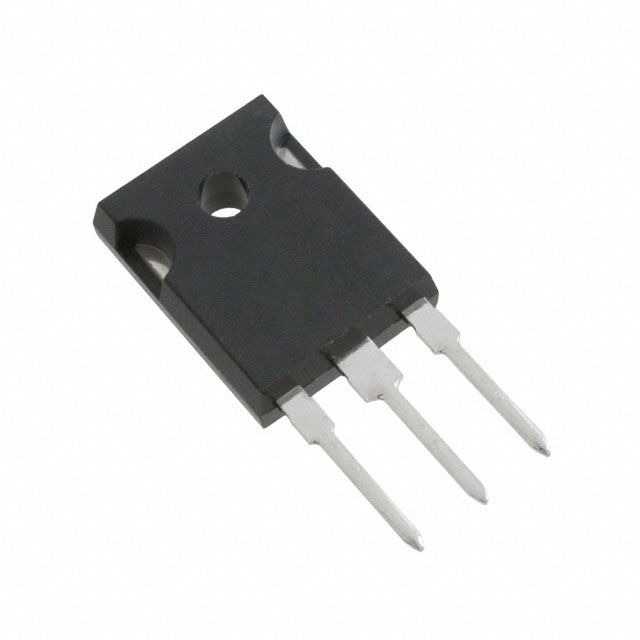

INFINEON - IDW100E60 - DIODE, 600V, 150A, TO247-3


The IDW100E60 is a fast switching Emitter Controlled Diode features fast recovery, soft switching, low reverse recovery charge and low forward voltage. The diode has excellent EMI behaviour and low conduction losses. The entire family has been qualified with a Tj(max) of 175°C and are qualified according to JEDEC standards for target applications.

    Low conduction losses
    Easy to parallel

Aplicaţii   : Maintenance & Repair, Motor Drive & Control, Alternative Energy, Consumer Electronics




    • DIODE, 600V, 150A, TO247-3
    • Diode Type: Standard Recovery
    • Diode Configuration: Single
    • Repetitive Reverse Voltage Vrrm Max: 600V
    • Forward Current If(AV): 150A
    • Forward Voltage VF Max: 2V
    • Reverse Recovery Time trr Max: 0ns
    • Forward Surge Current Ifsm Max: 400A
    • Operating Temperature Min: -55°C
    • Operating Temperature Max: 175°C
    • Diode Case Style: TO-247
    • No. of Pins: 3
    • MSL: -
    • Operating Temperature Range: -55°C to +175°C





ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
