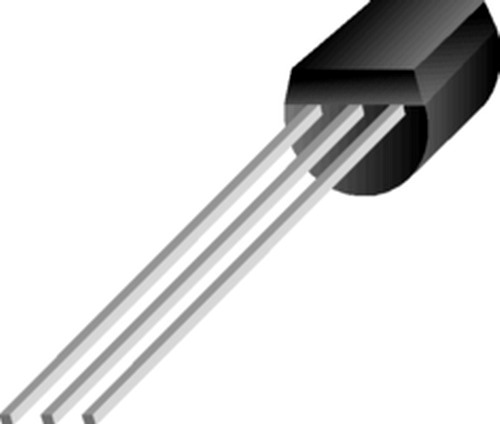

ZTX758, SI-P, 400V, 0.5A, TO92, DIODES INC

Furnizor:
DIODES INC.

Descriere
TRANSISTOR, PNP, E-LINE
 Transistor Polarity:PNP
 Collector Emitter Voltage V(br)ceo:400V
 Power Dissipation Pd:1W
 DC Collector Current:-500mA
 DC Current Gain hFE:50
 Transistor Case Style:E-Line
 No. of Pins:3
 Collector Emitter Voltage Vces:900mV
 Continuous Collector Current Ic Max:500mA
 Current Ic @ Vce Sat:100mA
 Current Ic Continuous a Max:500mA
 Current Ic hFE:200mA
 Full Power Rating Temperature:25C
 Gain Bandwidth ft Min:50MHz
 Gain Bandwidth ft Typ:50MHz
 Hfe Min:40
 No. of Transistors:1
 Package / Case:E-Line
 Power Dissipation Pd:1W
 Power Dissipation Ptot Max:2W
 Termination Type:Through Hole
 Voltage Vcbo:400V
