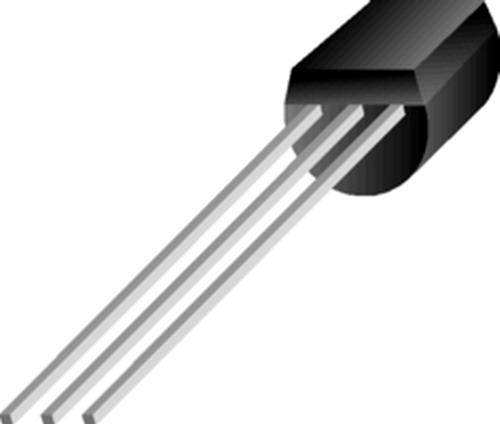

ZTX705, PNP, DARLINGTON, 120V, 1A, TO92

Furnizor:DIODES INC.

RoHS :  Da
Descriere
DARLINGTON TRANSISTOR, E-LINE
Transistor Polarity:PNP
Collector-to-Emitter Breakdown Voltage:120V
Typ Gain Bandwidth ft:160MHz
Power Dissipation Pd:1W
DC Collector Current:1A
DC Current Gain hFE:3000
Operating Temperature Range:-55C to +200C
Transistor Case Style:E-Line
No. of Pins:3
Av Current Ic:1A
Case Style:E-Line
Current Ic hFE:1A
Device Marking:ZTX705
Full Power Rating Temperature:25C
Max Current Ic:1A
Max Current Ic Continuous a:1A
Max Power Dissipation Ptot:1W
Max Voltage Vce Sat:-1.3V
Min Hfe:3000
No. of Transistors:1
Power Dissipation:1W
Termination Type:Through Hole
Transistor Type:Bipolar Darlington
Voltage Vcbo:140V
