Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare bipolare>ZTX603, SI-N, Darlington, NPN; 80V; 1A, 5000 HFE, DIODES INC.

Mareste

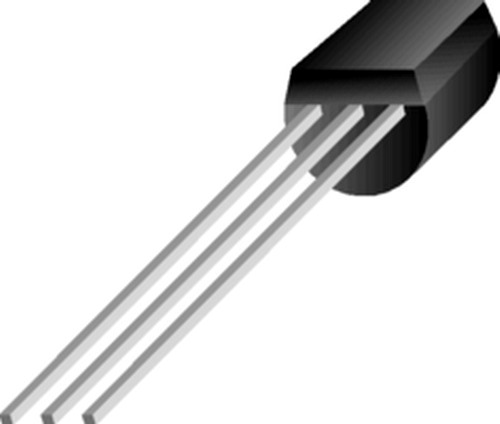

ZTX603, SI-N, Darlington, NPN; 80V; 1A, 5000 HFE, DIODES INC.

Denumire Produs: ZTX603, DIODES INC.

COD: 80505

Preț orientativ: 11,39 RON

Silicon NPN-darlington transistor+diode

Manufacturer: Diodes Incorporated
Product Category: Darlington Transistors
RoHS:  Details
Configuration: Single
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 80 V
Emitter- Base Voltage VEBO: 10 V
Collector- Base Voltage VCBO: 100 V
Maximum DC Collector Current: 1 A
Maximum Collector Cut-off Current: 0.01 uA
Pd - Power Dissipation: 1 W
Mounting Style: Through Hole
Package/Case: TO-92
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Series: ZTX603
Packaging: Bulk
DC Current Gain hFE Max: 2000
Height: 4.01 mm
Length: 4.77 mm
Width: 2.41 mm
Brand: Diodes Incorporated
Continuous Collector Current: 1 A
DC Collector/Base Gain hFE Min: 2000 at 50 mA at 5 V, 5000 at 500 mA at 5 V, 2000 at 1 A at 5 V, 500 at 2 A at 5 V
Product Type: Darlington Transistors


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
