Manufacturer: Diodes Inc.

Product Category: Transistors Darlington

RoHS: Details

Configuration: Single

Transistor Polarity: NPN

Collector- Emitter Voltage VCEO Max: 160 V

Emitter- Base Voltage VEBO: 10 V

Collector- Base Voltage VCBO: 180 V

Maximum DC Collector Current: 1 A

Maximum Collector Cut-off Current: 0.01 uA

Power Dissipation: 1 W

Maximum Operating Temperature: + 150 C

Mounting Style: Through Hole

Package / Case: TO-92

Continuous Collector Current: 1 A

DC Collector/Base Gain hfe Min: 5000 at 50 mA at 10 V, 10000 at 500 mA at 10 V, 5000 at 1 A at 10 V

Minimum Operating Temperature: - 55 C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.

Norul de tag-uri

Afisor LCD Grafic Ampermetru Analogic Amplificator Audio Arduino Balun Buton Panou Buzzer Card reader Comutator cu came Contactor Contactor el-mec Convertizor trifazat Cutie Decadica Datalogger DDR2 Drone extensions Invertor Invertor trifazat 5.5kW Invertor vectorial trifazat IoT Jumper Wire Microchip ARM Motor Driver Multimetru Digital Numarator impulsuri Placa dezvoltare Proxi Smart Plug Raspberry Pi 3 Regulator de proces Regulator tensiune Relee comutare faze Relee supraveghere faze Robotica Sensor DFROBOT Sensor OKYSTAR Sensor Seeed Set sigurante shield SSR Suport baterii MR18650 3.7V KEYS1049 Sursa alimentare led IP67 Sursa laborator Termostat Termostat 2 sensori Timer Timer scara Timer scolar Variator tensiune trifazat Voltage Regulator

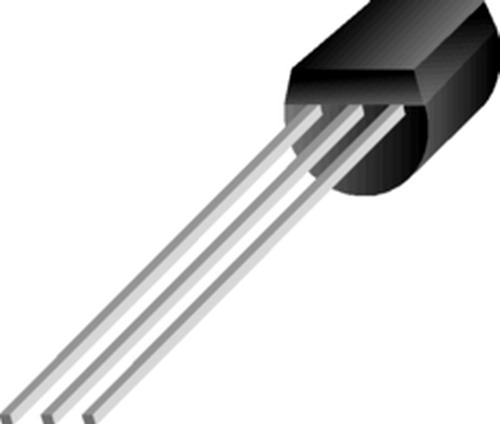

ZTX601, SI-N, DARLINGTON, 160V, 1A, TO92,

Denumire Produs: ZTX601

Manufacturer: Diodes Inc.
