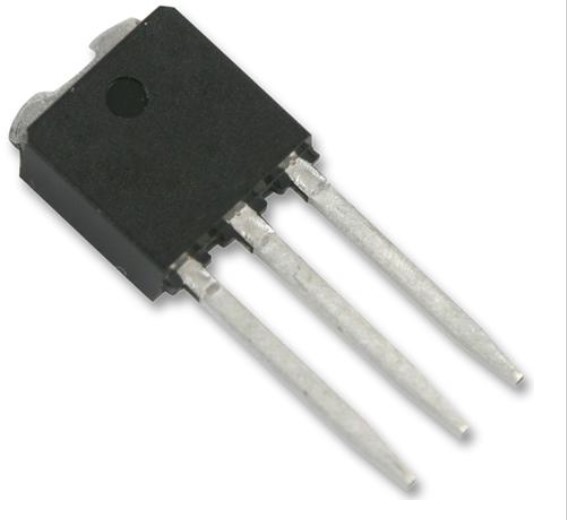

Componente electronice activeTiristoare, triace, diaceTriaceZ0409M, Triac 4A, 600V, 10mA, IPAK, STMicroelectronics
Componente electronice activeTiristoare, triace, diaceTriaceZ0409M, Triac 4A, 600V, 10mA, IPAK, STMicroelectronics
Z0409MF Triac 600V 4A IG=3-25mA TO202-3 RoHS
Producator: ST MICROELECTRONICS
Manufacturer: STMicroelectronics
Product Category: Triacs
RoHS: Details
Series: Z04
Non Repetitive On-State Current: 21 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
On-State Voltage: 2 V
Holding Current Ih Max: 10 mA
Gate Trigger Voltage - Vgt: 1.3 V
Gate Trigger Current - Igt: 10 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: TO-202
Packaging: Bulk
Current Rating: 4 A
Brand: STMicroelectronics
Product Type: Triacs
DESCRIPTION
The Z04 series is suitable for general purpose AC
switching applications. They can be found in
applications such as touch light dimmers, fan
controllers, HID lamp ignitors,...
Different gate current sensitivities are available,
allowing optimized performances when controlled
directly from microcontrollers.
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
