Furnizor:   SANYO DENKI - SANACE FANS

109BD24HA2

 RoHS :   Da
Descriere

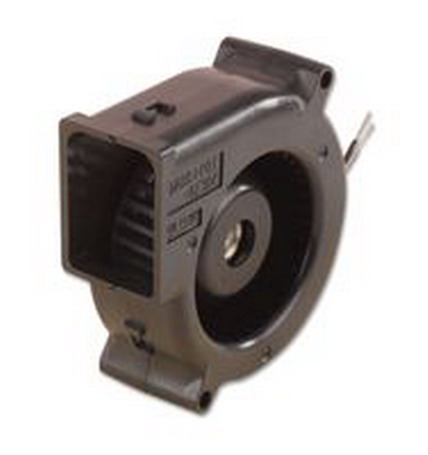

FAN, BLOWER, 76MM, 24VDC
 External Height:75.5mm
 External Width:76mm
 External Depth:30mm
 Current Type:DC
 Supply Voltage:24VDC
 Current Rating:170mA
 Flow Rate - Imperial:12.7cu.ft/min
 Flow Rate - Metric:22m³/h
 Bearing Style:Ball
 Power Connection Type:Lead Wires
 Series:Scircoco Ace
 Bearing Type:Ball
 Depth:30mm
 External Length / Height:75.5mm
 Flow Rate:12.7cu.ft/min
 Input Power:4.44W
 Input Voltage Max:27.6V
 Input Voltage Min:20.4V
 Noise Figure Typ:41.5dBA
 Operating Temperature Max:60C
 Operating Temperature Min:-10C
 Power Consumption:4.44W
 Pressure Max:151.9Pa
 Speed Range Max:3000rpm
 Supply Voltage VDC:24VDC
 Voltage Rating VDC:24V
