Ventilatoare, elemente încălzire, accesoriiVentilatoare DC-5-12-24-48VDCVentilator 12VDC, 40x40x10mm, 2 fire, HA40101V4-A99-A, Sunon
Ventilatoare, elemente încălzire, accesoriiVentilatoare DC-5-12-24-48VDCVentilator 12VDC, 40x40x10mm, 2 fire, HA40101V4-A99-A, Sunon
Manufacturer SUNON
Type of fan DC
Kind of fan axial
Operating voltage 4.5...13.8V

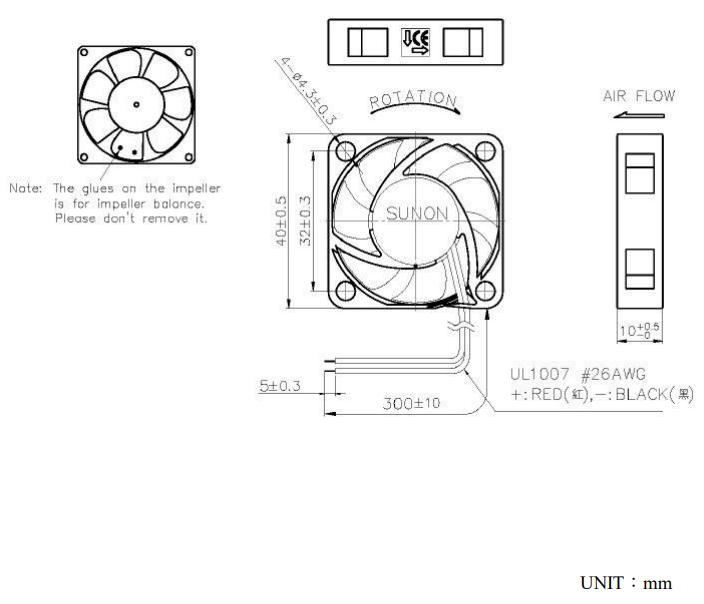

Fan dimensions 40x40x10mm
Power consumption 0.43W
Current rating 31mA
Fan efficiency 9.13m3/h
Noise level 15.7dBA
Kind of Bearing Vapo
Rotational rate/speed 5000rpm
Min. insulation resistance 10MΩ
Impeller material thermoplastic
Enclosure material thermoplastic
Leads lead x2
Operating temperature -10...70°C
Cable length 0.3m
Flammability rating ECE R-118:
This regulation applies to fire testing of materials used in the interiors
of motor vehicles, such as upholstery, floor coverings, etc.
UL94:
This standard is used to assess the flammability of plastic materials
used in various industries, including the electronics, automotive
and construction sectors.
UL94V-0
Additional functions
autorestart
Fan motor
brushless DC
Static pressure
2.28mm H2O
Wire size
26AWG
Related items
SR4-15.5
Storage temperature
-40...70°C
