Componente electronice pasiveVaristoriVaristoareV275LA40AP Varistor 275VA, 369VAC, 6.5KA, LITTELFUSE
Componente electronice pasiveVaristoriVaristoareV275LA40AP Varistor 275VA, 369VAC, 6.5KA, LITTELFUSE

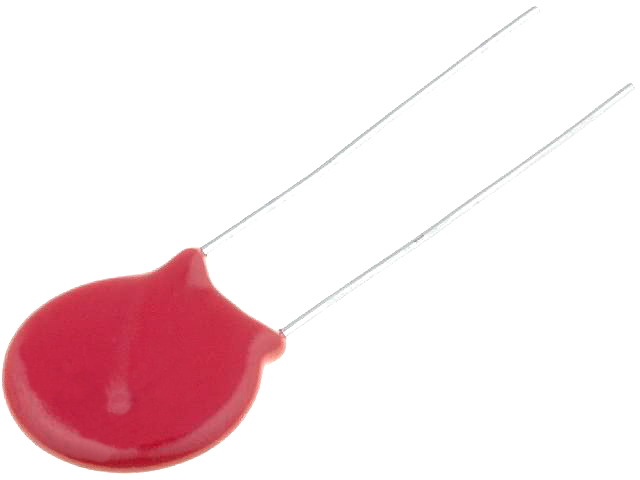

LITTELFUSE - V275LA40AP - VARISTOR, 140J, 275VAC , MARKED V275L40,
VARISTOR, 140J, 275VAC
Series: LA
Varistor Type: Metal Oxide Varistor (MOV)
Peak Surge Current @ 8/20µs: 6.5kA
Varistor Case Style: Disc 20mm
Clamping Voltage Vc Max: 710V
Peak Energy (10/1000uS): 140J
Voltage Rating V DC: 369V
Voltage Rating V AC: 275V
Operating Temperature Min: -55°C
Operating Temperature Max: 85°C
Body Diameter: 20mm
Capacitance: 900pF
Clamping Voltage: 710V
Clamping Voltage @ 8/20µs Max: 710V
Device Marking: 275L40
External Width: 5.6mm
Lead Diameter: 0.86mm
Lead Length: 25.4mm
Operating Temperature Range: -55°C to +85°C
Peak Pulse Current IPP @ 8/20µs: 6500A
Suppressor Type: Varistor
Surge Current: 6.5kA
Temperature Coeff. +: 0.05ppm/°C
Test Voltage: 2500V
Transient Energy: 140J
Varistor Voltage: 430V
Varistor Voltage @ 1mA: 430V
Varistor Voltage @ 1mA Max: 473V
Varistor Voltage Tolerance +: 10%
Varistor Voltage Tolerance -: 10%
