Furnizor: LITTELFUSE
V1000LA160BP
RoHS : Da
Descriere

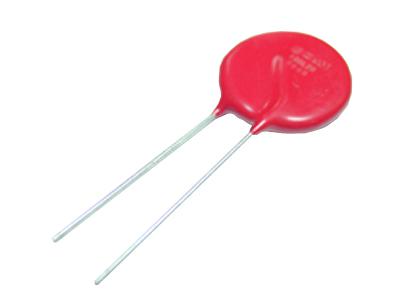

VARISTOR, 360J, 1000VAC
Series:LA
Suppressor Type:Varistor
Clamping Voltage Vc Max:2420V
Peak Energy (10/1000uS):360J
Voltage Rating VDC:1200V
Voltage Rating VAC:1000V
Operating Temperature Range:-55C to +85C
Body Diameter:20mm
Capacitance:250pF
Clamping Voltage:2.42kV
Clamping Voltage @ 8/20µs Max:2420V
Device Marking:1000L160
External Width:5.6mm
Lead Diameter:0.86mm
Lead Length:25.4mm
Operating Temperature Max:85C
Operating Temperature Min:-55C
Package / Case:Radial
Peak Pulse Current IPP @ 8/20µs:6500A
Surge Current:6.5kA
Temperature Coeff. +:0.05ppm/C
Termination Type:Radial Leaded
Test Voltage:2500V
Transient Energy:360J
Varistor Voltage:1600V
Varistor Voltage @ 1mA:1425V
Varistor Voltage @ 1mA Max:1600V
SIMILAR : S20K1000
