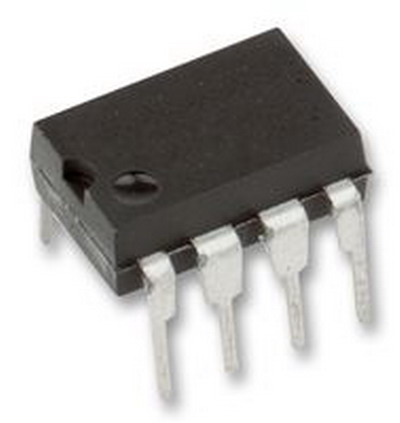

TLC27L2CP, amplificator operational, TEXAS INSTRUMENTS

Denumire Produs: TLC27L2CP, TEXAS INSTRUMENTS

COD: 79503

Preț orientativ: 14,38 RON

Manufacturer: Texas Instruments
Product Category: Precision Amplifiers
RoHS:  Details
Series: TLC27L2
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 85 kHz
SR - Slew Rate: 0.03 V/us
CMRR - Common Mode Rejection Ratio: 65 dB to 94 dB
Ib - Input Bias Current: 60 pA
Vos - Input Offset Voltage: 10 mV
en - Input Voltage Noise Density: 68 nV/sqrt Hz
Supply Voltage - Max: 16 V
Supply Voltage - Min: 3 V
Operating Supply Current: 10 uA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package/Case: PDIP-8
Packaging: Tube
Amplifier Type: Precision Amplifier
Height: 4.57 mm
Input Type: Rail-to-Rail
Length: 9.81 mm
Product: Precision Amplifiers
Supply Type: Single
Technology: LinCMOS
Width: 6.35 mm
Brand: Texas Instruments
Operating Supply Voltage: 3 V to 16 V
Pd - Power Dissipation: 1000 mW
Product Type: Precision Amplifiers
Subcategory: Amplifier ICs
Tradename: LinCMOS
Vcm - Common Mode Voltage: Negative Rail - 0.2 V to Positive Rail - 1 V
Voltage Gain dB: 116.9 dB

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
