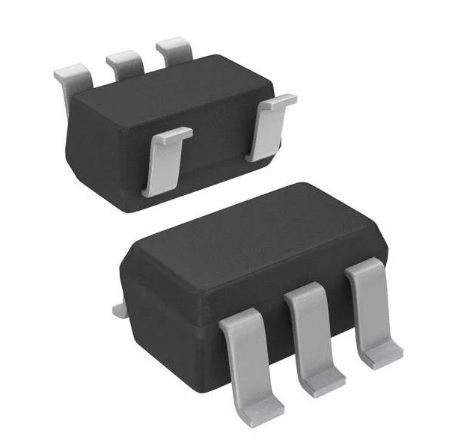

TL432AIDBVR, Voltage Reference, Precision, Shunt - Adjustable, TL432A Series, 2.495V to 36V, SOT-23-5
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
Manufacturer: Texas Instruments
Product Category: Voltage References
RoHS: Details
Mounting Style: SMD/SMT
Package/Case: SOT-23-5
Reference Type: Shunt Adjustable Precision References
Output Voltage: Adjustable
Initial Accuracy: 1 %
Temperature Coefficient: 92 PPM / C
Series VREF - Input Voltage - Max: 37 V
Shunt Current - Max: 100 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Series: TL432A
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Description/Function: ADJUSTABLE PRECISION SHUNT REGULATOR
Height: 1.15 mm
Length: 2.9 mm
Operating Temperature Range: - 40 C to + 125 C
Product: Voltage References
Width: 1.6 mm
Brand: Texas Instruments
Shunt Current - Min: 600 uA
Topology: Shunt References
Maximum Output Voltage: 36 V
Product Type: Voltage References
