Pagină de start>Componente electronice active>Circuite integrate>Circuite integrate analogice, comparatoare, drivere>TL072CD, Operational Amplifier, Dual, 2 Amplifier, 4 MHz, 16 V/µs, 6V to 36V, SO8 Pins

Mareste

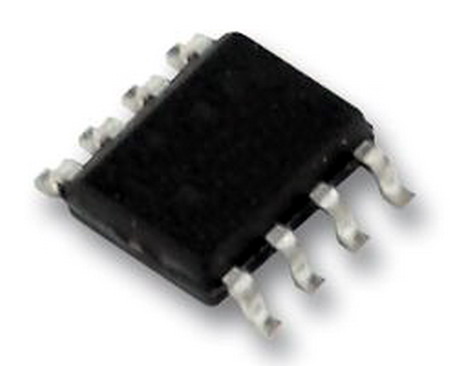

TL072CD, Operational Amplifier, Dual, 2 Amplifier, 4 MHz, 16 V/µs, 6V to 36V, SO8 Pins

Denumire Produs: TL072CD

COD: 51216

Preț orientativ: 7,18 RON

LOW NOISE J-FET DUAL OPERATIONAL AMPLIFIERS SO8

Manufacturer: Texas Instruments
Product Category: Operational Amplifiers - Op Amps
RoHS: RoHS Compliant Details
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Supply Voltage - Max: 36 V
Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 3 MHz
SR - Slew Rate: 13 V/us
CMRR - Common Mode Rejection Ratio: 70 dB
Ib - Input Bias Current: 200 pA
Vos - Input Offset Voltage: 10 mV
Supply Voltage - Min: 7 V
Operating Supply Current: 5 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Shutdown: No Shutdown
Series: TL072
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Brand: Texas Instruments
en - Input Voltage Noise Density: 18 nV/sqrt Hz
In - Input Noise Current Density: 0.01 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3.5 V
Product: Operational Amplifiers
Technology: BiFET
Vcm - Common Mode Voltage: Negative Rail + 4 V to Positive Rail - 4 V


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
