Termometre, Higrometre, TermostateTermostate cu bimetalTermostat bimetalic, 160C, NC, BT-H160H

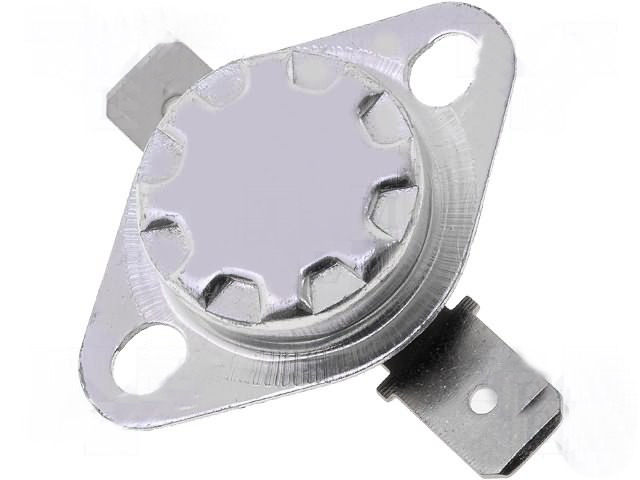

BT-H160H Termostat bimetalic 10A/AC250V, gama 160C/130C RoHS
Senzor:termostat; Config.iesire:NC; Tdesch:160C; Tinch:130C
Producator: PROFFUSE Simbol original: BT-H160H
Tip senzor termostat
Configuratie iesire NC
Conexiune conectori 6,3 mm
Curent de lucru max. 10 A
Tensiune de lucru max. 250 V AC

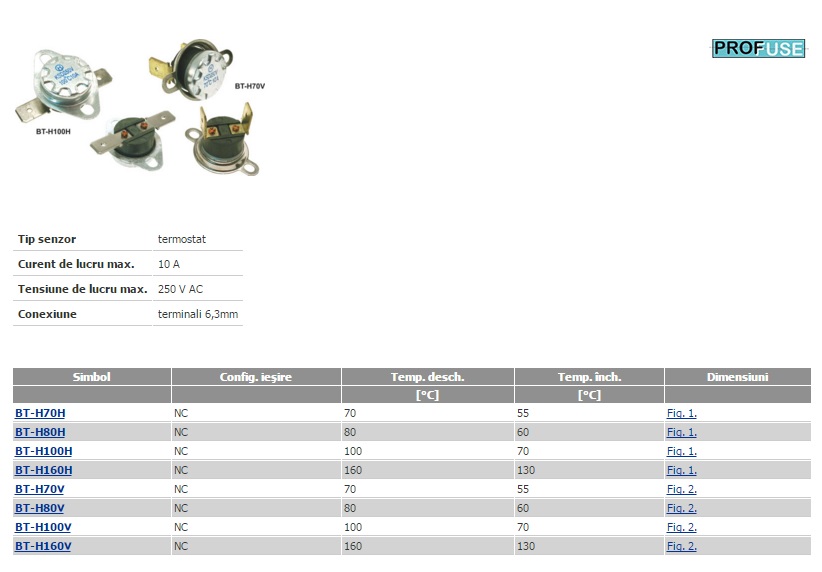

Symbol Opening Temperature Closing
[C] [C]
BT-H70H 70±3 55±5 horizontal
BT-H80H 80±3 60±7 horizontal
BT-H100H 100±3 70±10 horizontal
BT-H160H 160±10 130 ±15 horizontal
BT-H70V 70±3 55±5 vertical
BT-H80V 80±3 60±7 vertical
BT-H100V 100±3 70±10 vertical
BT-H160V 160±10 130±15 vertical
