Termometre, Higrometre, TermostateTermostate cu bimetalTermostat bimetalic, 100C, NC, 10A, BT-H100H
BT-H100H Termostat bimetalic 10A/AC250V, gama 100C/70C

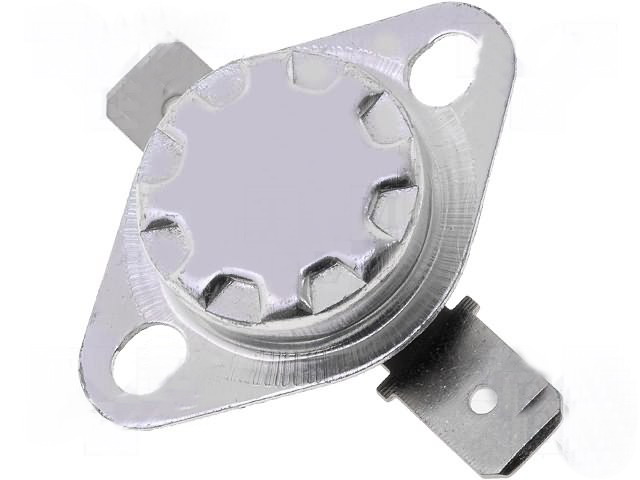

Termostat bimetalic BT-H100H
BT-H100H Termostat bimetalic 10A/AC250V, gama 100C/70C
Senzor:termostat; Config.iesire:NC; Tdesch:100C; Tinch:70C

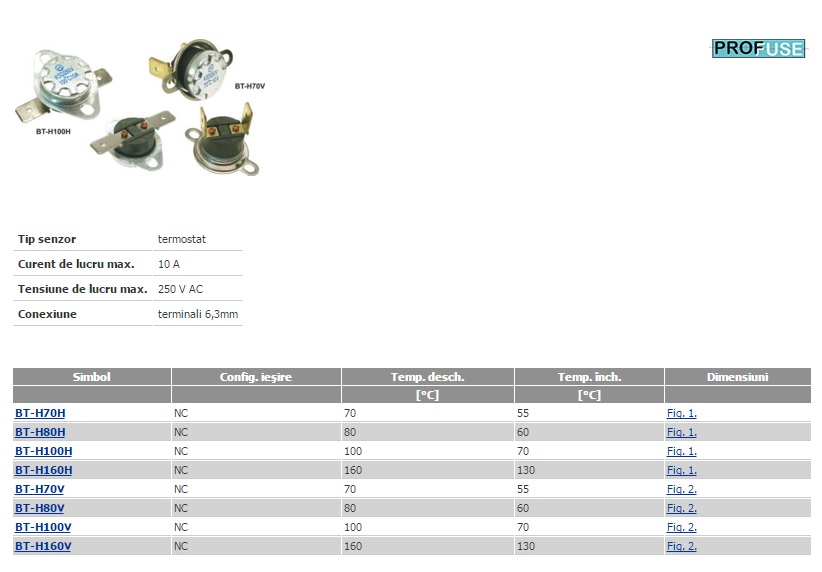

Symbol Opening Temperature Closing
[C] [C]
BT-H70H 70±3 55±5 horizontal
BT-H80H 80±3 60±7 horizontal
BT-H100H 100±3 70±10 horizontal
BT-H160H 160±10 130±15 horizontal
BT-H70V 70±3 55±5 vertical
BT-H80V 80±3 60±7 vertical
BT-H100V 100±3 70±10 vertical
BT-H160V 160±10 130±15 vertical
.Max Voltage : 250 V AC
Max current : 10 A
Terminations : 6,3 mm plug-on connectors
Contacts : NC - normal close
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
