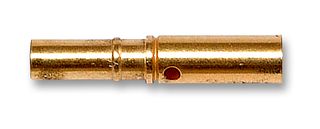

Terminal conector, mama, Datamate,24AWG, GOLD, M80-0130005

Denumire Produs: M80-0130005

COD: 76917

Preț orientativ: 9,92 RON

Cantitatea minimă pentru "Terminal conector, mama, Datamate,24AWG, GOLD, M80-0130005" este 1.

M80-0130005 -  Contact, Datamate Series, Socket, Crimp, 24 AWG, Gold Plated Contacts, Datamate Connectors

Producător: HARWIN

Product Range: Datamate Series

Contact Gender: Socket
Contact Termination Type: Crimp
Wire Size AWG Max: 24AWG
Contact Plating: Gold Plated
Contacts For Use With: Datamate Connectors
Wire Size AWG Min: 28AWG
Contact Material: Beryllium Copper

The M80-013 series from Harwin are Datamate female cable crimp contacts. These series can be used with all types of female Datamate (L-Tek, J-Tek, Mix-Tek).
Barrel crimp, spare small bore signal contact
Tin and gold plated brass shell
Gold plated beryllium copper clip
Durability of 500 cycles
Operating temperature range -55°C to 125°C
Wire size from 24AWG to 28AWG
2.00mm pitch high reliability Datamate connector system
Current rating of 3A
