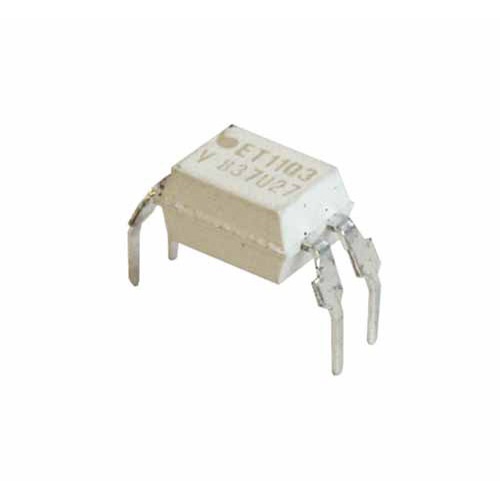

TCET1102 OPTOCUPLOR VISHAY PDIP-4
- OPTOCOUPLER, HIGH TEMPERATURE, VDE
- No. of Channels: 1
- Isolation Voltage: 5kV
- Optocoupler Output Type: Phototransistor
- Input Current: 50mA
- Output Voltage: 70V
- Opto Case Style: DIP
- No. of Pins: 4
- Approval Bodies: BSI / CSA / EN / FIMKO / VDE
- Approval Category: UL Recognised
- Collector Emitter Voltage V(br)ceo: 70V
- Collector Emitter Voltage Vces: 0.3V
- Current If CTR: 1mA
- Current Transfer Ratio Min: 22%
- Current Transfer Ratio Typ: 45%
- External Depth: 6.3mm
- External Length / Height: 4.4mm
- External Width: 4.75mm
- Fall Time tf: 4.7µs
- Forward Voltage VF Max: 1.6V
- Lead Spacing: 2.54mm
- Operating Temperature Range: -40°C to +100°C
- Peak Forward Current: 130mA
- Power Ouput Dissipation: 265mW
- Rise Time: 3µs
- Row Pitch: 9mm
- Supply Voltage: 5V
- Voltage Vf Typ: 1.25V
