Sursa tensiune 24Vcc/0.6A PS-15-24 AC-DC

Livrare

Ofertă specială de transport pentru persoane fizice*.

*)Pentru a afla condiţiile de livrare gratuită apăsaţi aici.

Mareste

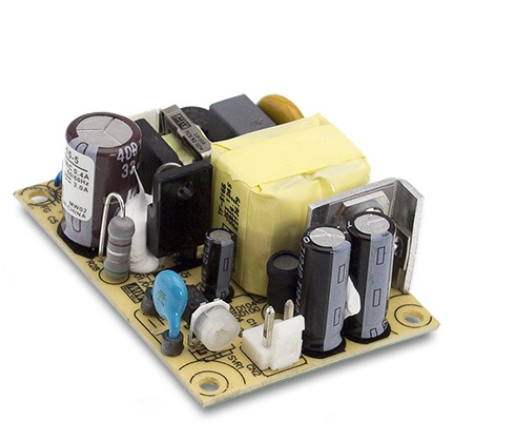

Sursa tensiune 24Vcc/0.6A PS-15-24 AC-DC

Denumire Produs: PS-15-24

COD: 52704

Preț: 89,80 RON

(Pretul include TVA)

Stoc Limitat

Adaugati la lista de preferinte

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Voltage Range: 85 ~ 264VAC 120 ~ 370VDC

Input Frequency: 47 ~ 63Hz

Input Current: 0.4A/115VAC 0.2A/230VAC

Inrush Current: 40A/230VAC, Cold start

Leakage Current:<0.5mA / 240VAC

Setup, Rise Time:5 ~ 24V: 1200ms, 30ms 48V: 1200ms, 75ms at full load

Hold Time:100ms at full load

Voltage Tolerance: +/-2.0%

Over Load Protection:Above 105% rated output power.

Protection type:Hiccup mode, recovers automatically after fault condition is removed

Over Temperature Protection: Tj 140C typically (U1) Detect on main control IC

Protection type:Hiccup mode, recovers automatically after fault condition is removed

Working Temerature: -10~+60C (refer to output load derating curve)

Working Humidity: 20 ~ 90% RH non-condensing

Storage Temperture, Humidity: -20~+85C, 10~95% RH

Temerature Coefficient: +/-0.03%/C (0~50°C)

Vibration: 10 ~ 500Hz, 2G 10min./1 cycle, 60min. each along X,Y,Z axes

Safety Standards: EN60950-1 CB Approved by TUV

Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMC: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EN61000-4-2,3,4,5,6,8,11 light industry level, criteria A

24V / 0.625A / 0 ~ 1.25A / 15W / 120mV / +/-1.0% / +/-1.0% / 77% / 27.6 ~ 32.4V

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
