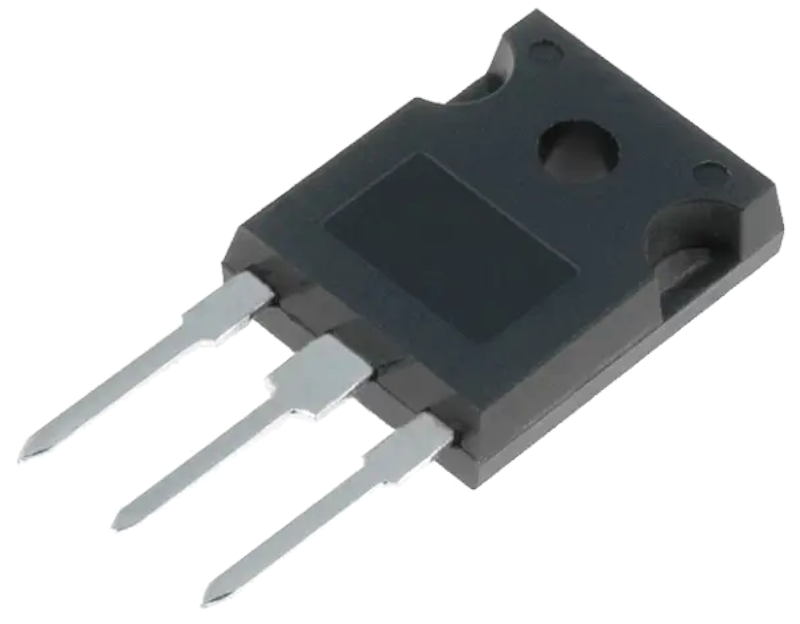

Componente electronice activeTranzistoareTranzistoare N-MOSFETSTW6N95K5, N-MOSFET, 900V, 9A, TO247-3, STMICROELECTRONICS
Componente electronice activeTranzistoareTranzistoare N-MOSFETSTW6N95K5, N-MOSFET, 900V, 9A, TO247-3, STMICROELECTRONICS
Manufacturer: STMicroelectronics
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 950 V
Id - Continuous Drain Current: 9 A
Rds On - Drain-Source Resistance: 1.25 Ohms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 3 V
Qg - Gate Charge: 13 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 90 W
Channel Mode: Enhancement
Tradename: MDmesh
Series: STW6N95K5
Packaging: Tube
Brand: STMicroelectronics
Configuration: Single
Product Type: MOSFET
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
