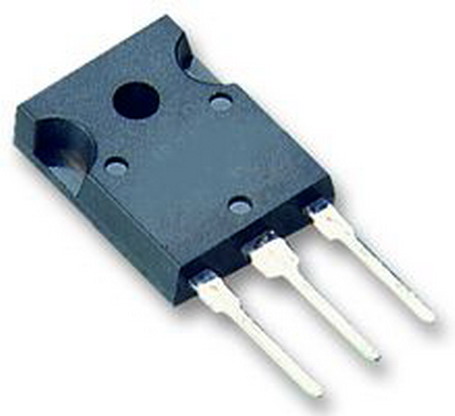

Componente electronice activeTranzistoareTranzistoare N-MOSFETSTW10NK60Z, N-MOSFET, 600V. 10A, TO247
Furnizor: STMICROELECTRONICS
STW10NK60Z
RoHS : Da
Descriere
MOSFET, N, TO-247
Transistor Polarity:N Channel
Continuous Drain Current Id:10A
Drain Source Voltage Vds:600V
On Resistance Rds(on):750mohm
Rds(on) Test Voltage Vgs:10V
Threshold Voltage Vgs Typ:3.75V
Operating Temperature Range:-55C to +150C
Transistor Case Style:TO-247
No. of Pins:3
Current Id Max:10A
Device Marking:STW10NK60Z
Junction Temperature Tj Max:150C
Junction Temperature Tj Min:-55C
N-channel Gate Charge:50nC
No. of Transistors:1
On State resistance @ Vgs = 10V:750mohm
Package / Case:TO-247
Power Dissipation Pd:156W
Pulse Current Idm:36A
Rate of Voltage Change dv / dt:4.5V/µs
Termination Type:Through Hole
Transistor Type:
Voltage Vds Typ:600V
Voltage Vgs Max:30V
Voltage Vgs Rds N Channel:10V
Voltage Vgs Rds on Measurement:10V
Voltage Vgs th Min:3V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
