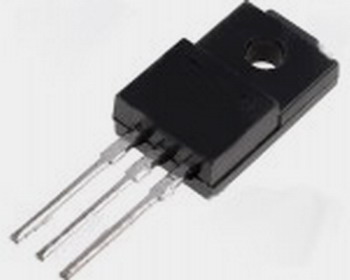

Componente electronice activeTranzistoareTranzistoare N-MOSFETSTP9NK60ZFP, N-MOSFET, 600V, 7A, TO220F
Furnizor: STMICROELECTRONICS
STP9NK60ZFP
RoHS : Da
Descriere
MOSFET, N, TO-220FP
Transistor Polarity:N
Current Id Max:7A
Drain Source Voltage Vds:600V
On Resistance Rds(on):0.95ohm
Rds(on) Test Voltage Vgs:10V
Voltage Vgs Max:30V
Power Dissipation:30W
Operating Temperature Range:-55C to +150C
Transistor Case Style:TO-220FP
Avalanche Single Pulse Energy Eas:235mJ
Capacitance Ciss Typ:1110pF
Continuous Drain Current Id:7A
Current Iar:7A
On State resistance @ Vgs = 10V:0.95ohm
Package / Case:TO-220FP
Power Dissipation Pd:30W
Pulse Current Idm:28A
Termination Type:Through Hole
Threshold Voltage Vgs Typ:3.75V
Transistor Type:MOSFET
Voltage Vds:600V
Voltage Vds Typ:600V
Voltage Vgs Rds on Measurement:10V
Voltage Vgs th Max:4.5V
Voltage Vgs th Min:3V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
