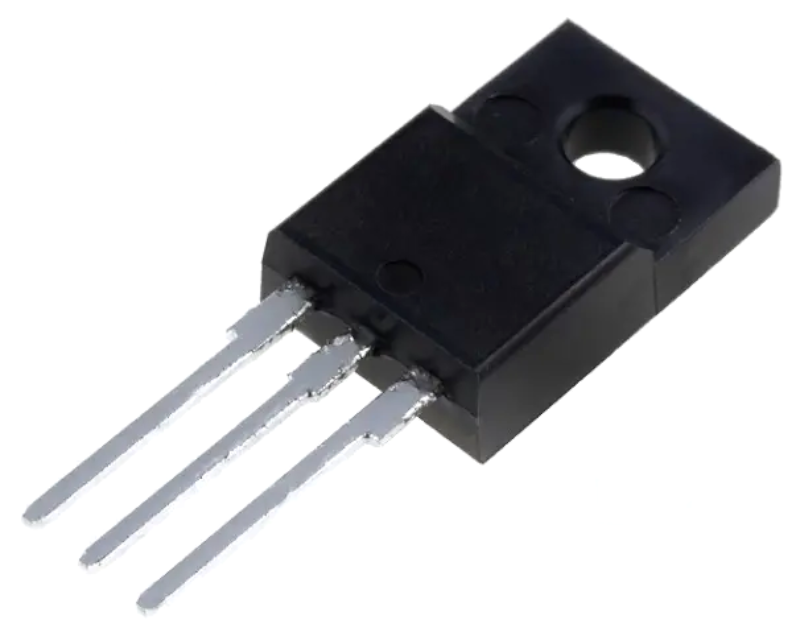

Componente electronice activeTranzistoareTranzistoare N-MOSFETFDPF44N25T, N-MOSFET, 250V, 44A, TO220FP, ON SEMICONDUCTOR
Componente electronice activeTranzistoareTranzistoare N-MOSFETFDPF44N25T, N-MOSFET, 250V, 44A, TO220FP, ON SEMICONDUCTOR
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package/Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 250 V
Id - Continuous Drain Current: 44 A
Rds On - Drain-Source Resistance: 69 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 3 V
Qg - Gate Charge: 61 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 38 W
Channel Mode: Enhancement
Packaging: Tube
Configuration: Single
Height: 16.07 mm
Length: 10.36 mm
Series: FDPF44N25T
Transistor Type: 1 N-Channel
Width: 4.9 mm
Brand: ON Semiconductor / Fairchild
Fall Time: 112 ns
Product Type: MOSFET
Rise Time: 402 ns
Subcategory: MOSFETs
Typical Turn-Off Delay Time: 85 ns
Typical Turn-On Delay Time: 53 ns
