Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare N-MOSFET>STB75NF75L, N-MOSFET, 75V, 75A, D2PAK,

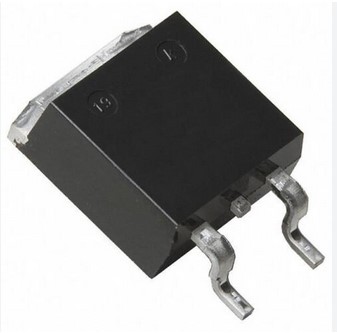

Poza STB75NF75

Mareste

STB75NF75L, N-MOSFET, 75V, 75A, D2PAK,

Denumire Produs: STB75NF75LT4,

COD: 97694

Preț orientativ: 25,54 RON

Product Category: MOSFET
Manufacturer: STMicroelectronics
RoHS: RoHS Compliant Details
Technology: Si
Mounting Style: SMD/SMT
Package/Case: TO-263-3
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Vds - Drain-Source Breakdown Voltage: 75 V
Id - Continuous Drain Current: 75 A
Rds On - Drain-Source Resistance: 10 mOhms
Vgs - Gate-Source Voltage: 15 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Packaging: Reel
Channel Mode: Enhancement
Brand: STMicroelectronics
Configuration: Single
Fall Time: 60 ns
Forward Transconductance - Min: 120 S
Height: 4.6 mm
Length: 10.4 mm
Pd - Power Dissipation: 300 W
Rise Time: 155 ns
Series: STB75NF75L
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 110 ns
Typical Turn-On Delay Time: 35 ns
Width: 9.35 mm


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
