Pagină de start>Componente electronice active>Circuite integrate>Circuite integrate analogice, comparatoare, drivere>SSM2019BNZ, Microphone Preamplifiers, Self Contained, Audio Pre-Amplifier, DIP

Mareste

SSM2019BNZ, Microphone Preamplifiers, Self Contained, Audio Pre-Amplifier, DIP

Denumire Produs: SSM2019BNZ

COD: 45581

Preț orientativ: 68,47 RON

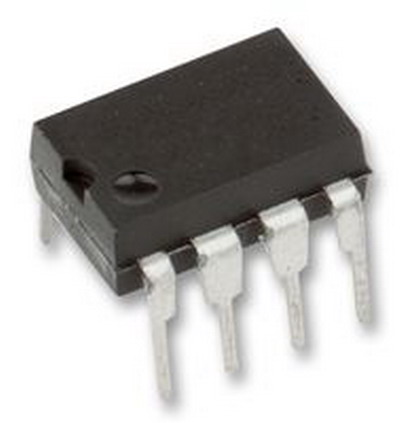

SSM2019BNZ Circuit integrat preamplificator audio DIP8

Producator: ANALOG DEVICES Simbol original: SSM2019BNZ
Produs similar pentru: SSM2017P

Manufacturer: Analog Devices Inc.
Product Category: Microphone Preamplifiers
RoHS: Details
Series: SSM2019
Amplifier Type: General Purpose Microphone Preamplifier
Number of Channels: 1 Channel
THD plus Noise: 0.017 %
Ib - Input Bias Current: 10 uA
Vos - Input Offset Voltage: 50 uV
CMRR - Common Mode Rejection Ratio: 110 dB
Supply Voltage - Max: 18 V
Supply Voltage - Min: 5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package/Case: PDIP-8
Packaging: Tube
Audio - Load Impedance: 2 kOhms
Brand: Analog Devices
Class: Class-AB
Gain: 70 dB
GBP - Gain Bandwidth Product: 1 MHz
Height: 3.3 mm
Input Signal Type: Differential
Length: 9.27 mm
Operating Supply Current: 4.6 mA
Operating Supply Voltage: 5 V to 18 V
Output Signal Type: Analog
Product: Microphone Preamplifiers
Product Type: Microphone Preamplifiers
PSRR - Power Supply Rejection Ratio: 124 dB
Shutdown: No Shutdown

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
