SS495A

Pagină de start

Senzori

Senzori Hall. magnetici

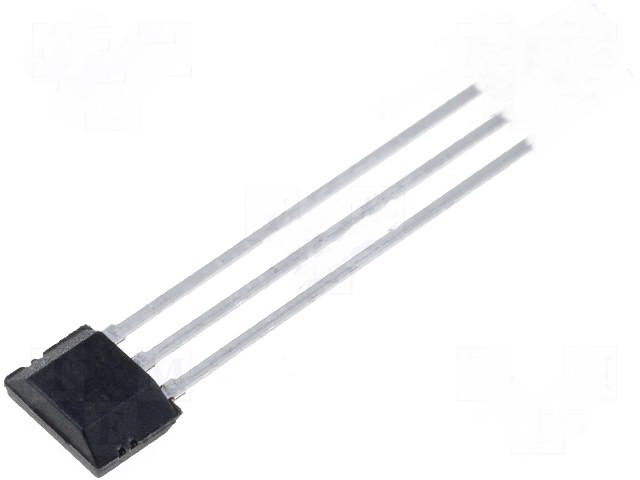

SS495A, Senzor Hall, de pozitie, analogic, ratiometric, HONEYWELL

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: HONEYWELL S&C

SS495A

RoHS : Da
Descriere
SENSOR, HALL EFFECT, RATIOMETRIC, LINEAR
Sensor Terminals:Pin
Min Output Voltage:0.4V dc
DC Supply Voltage Range:4.5V to 10.5V
Output Configuration:Sink / Source
Sensor Housing:Rectangular
Switching Speed:3µs
Contact Configuration:Radial Lead IC
Input Current:8.7mA
Max Operating Temperature:150C
Max Output Voltage:0.2V dc
Max Supply Voltage:10.5V dc
Max Supply Voltage DC:10.5V
Min Supply Voltage:4.5V dc
Min Temperature Operating:-40C
No. of Pins:3
Response Time:3µs
Sensor Type:Hall-Effect Linear Position Sensor
Series:SS400
Termination Type:Through Hole

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
