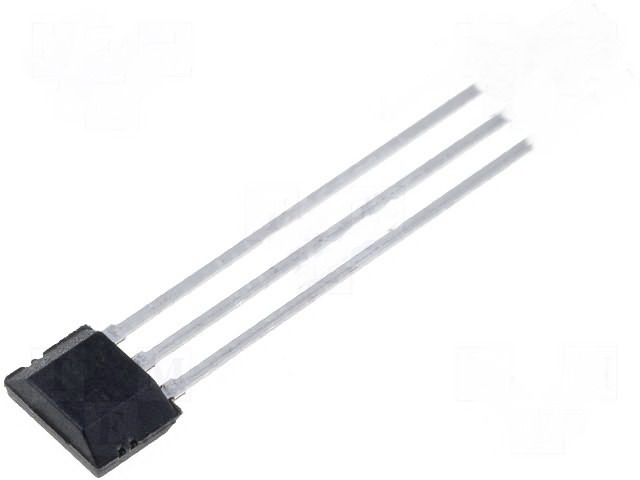

SenzoriSenzori Hall. magneticiSS411A, Senzor: Hall, de pozitie, bipolar, 3.8-30V, HONEYWELL
SenzoriSenzori Hall. magneticiSS411A, Senzor: Hall, de pozitie, bipolar, 3.8-30V, HONEYWELL
Furnizor: HONEYWELL S&C
- SENSOR, HALL EFFECT
- Sensor Terminals: Through Hole
- Output Voltage Min: 400mV
- Supply Voltage Range DC: 3.8V to 30V
- Output Configuration: Sink
- Sensor Housing: Rectangular
- Switching Speed: 1.5µs
- Differential Magnetic Force Min: 15G
- Magnetic Release Force Min: -60G
- No. of Pins: 3
- Operating Magnetic Force Max: 60G
- Operating Temperature Max: 150C
- Operating Temperature Min: -40C
- Output Current: 50mA
- Output Voltage Max: 0.4V
- Sensor Type: Hall Effect
- Series: SS400
- Supply Voltage DC Max: 30V
- Termination Type: Through Hole
