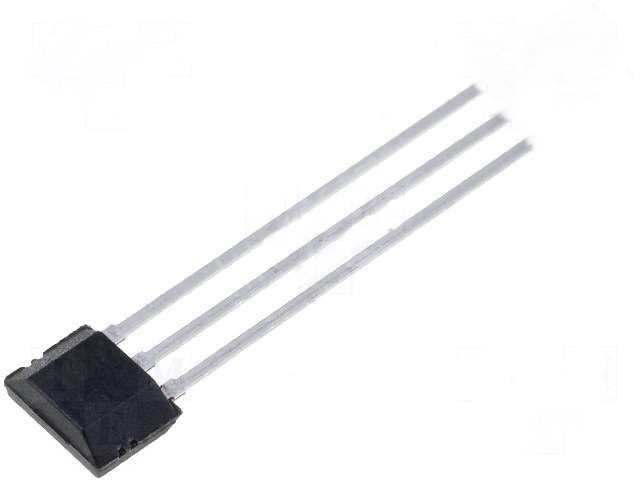

HONEYWELL S&C - SS40A - SENSOR, HALL EFFECT
SENSOR, HALL EFFECT
Sensor Terminals: Through Hole
Output Voltage Min: 400mV
Supply Voltage DC Min: 4.5V
Supply Voltage DC Max: 24V
Output Configuration: Sink
Sensor Housing: Rectangular
Switching Speed: 1.5µs
Colour: Black
Differential Magnetic Force Min: 90G
Input Current: 6.5mA
Magnetic Release Force Min: -110G
No. of Pins: 3
Operating Magnetic Force Max: 110G
Operating Temperature Max: 125°C
Operating Temperature Min: -40°C
Output Current: 20mA
Output Voltage Max: 0.4VDC
Series: SS40A
Supply Current: 10mA
Supply Voltage Max: 24.0VDC
Supply Voltage Min: 4.5VDC
Supply Voltage Range DC: 4.5V to 24V
