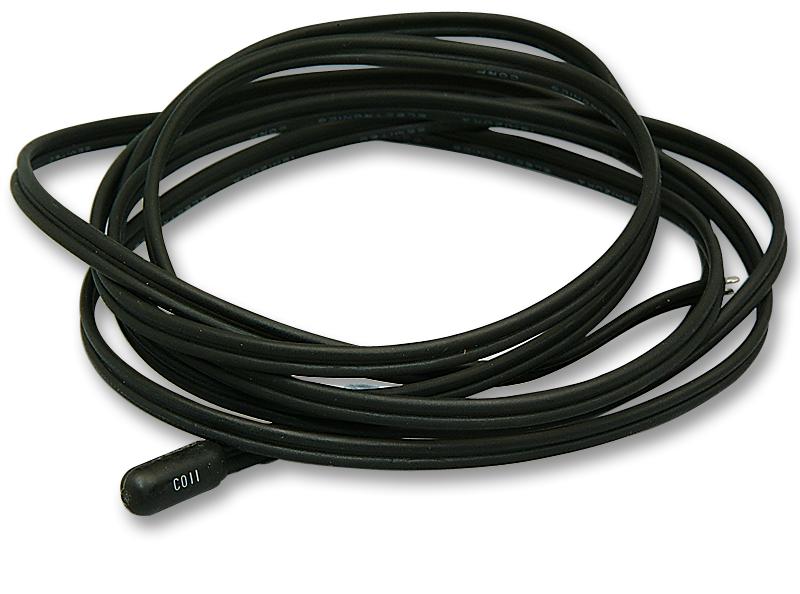

Sonda temperatura, imersie, NTC, 10K, -25C/+110C,

External Diameter: 6mm

PROBE, NTC, PLASTIC, IP65

Thermistor Type: NTC

Accessory Type: NTC Probe

For Use With: Carel Temperature Sensors

Lead Length: 1.5m

Operating Temperature Max: +110°C

Probe/Pocket Body Material: Plastic

Resistance Tolerance: ± 1%

Operating range

Connections Stripped ends, dimensions: 5±1 mm

Sensor NTC 10 kΩ ±1% at 25 °C Beta 3435

Dissipation factor (in air)

approx. 3 mW/°C

Thermal constant over time (in air) approx. 75 s

Black two-wire fl at cable, with tinned copper wire size 0.3 mm 2

Sensitive element index of protection IP67

Sensitive element housing Polyolefi n

Classifi cation according to protection against electric

shock (sensitive element & cable)

Basic insulation for 250 Vac

Category of resistance to heat and fi

Flame retardant

Standard NSF

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.

Norul de tag-uri

Afisor LCD Grafic Ampermetru Analogic Amplificator Audio Arduino Balun Buton Panou Buzzer Card reader Comutator cu came Contactor Contactor el-mec Convertizor trifazat Cutie Decadica Datalogger DDR2 Drone extensions Invertor Invertor trifazat 5.5kW Invertor vectorial trifazat IoT Jumper Wire Microchip ARM Motor Driver Multimetru Digital Numarator impulsuri Placa dezvoltare Proxi Smart Plug Raspberry Pi 3 Regulator de proces Regulator tensiune Relee comutare faze Relee supraveghere faze Robotica Sensor DFROBOT Sensor OKYSTAR Sensor Seeed Set sigurante shield SSR Suport baterii MR18650 3.7V KEYS1049 Sursa alimentare led IP67 Sursa laborator Termostat Termostat 2 sensori Timer Timer scara Timer scolar Variator tensiune trifazat Voltage Regulator

Sonda temperatura, NTC 10K, -25C/+110C, IP65, 1.5M, NTC15HP, CAREL

Denumire Produs: NTC015WH01

Sonda temperatura, imersie, NTC, 10K, -25C/+110C,
