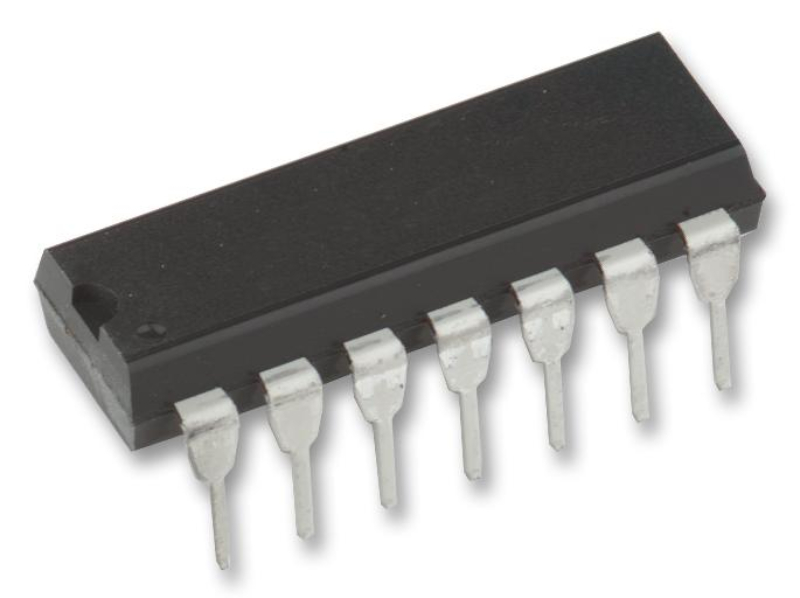

SN75183N, differential line drivers, dual, PDIP-14, TEXAS INSTRUMENTS

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

The SN75183N is a dual differential Line Driver designed to provide differential output signals with high current capability for driving balanced lines, such as twisted pair, at normal line impedances without high power dissipation. This device can be used as TTL expander/phase splitters, because the output stages are similar to TTL totem-pole outputs. The driver is of monolithic single-chip construction and both halves of the dual circuits use common power supply and ground terminals.

Single 5V supply

Differential line operation

TTL compatibility

Short-circuit protection of outputs

Output clamp diodes to terminate line transients

High-current outputs

Single-ended or differential AND/NAND outputs

Designed for use with dual differential drivers SN55182 and SN75182

Designed to be interchangeable with National semiconductor DS7830 and DS8830

Producator: TEXAS INSTRUMENTS

Tip IC : Differential line driver

Nr. intrări : 2

Nr. ieșiri : 2

Tensiune alimentare : 4.75...5V

Temperatura de operare : 0...70°C

Carcasă : PDIP-14
