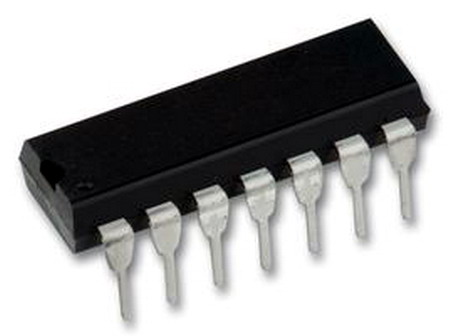

74LS00 Circuit integrat: digital; NAND; 2-Input, Quad; DIP14 RoHS
Producator: TEXAS INSTRUMENTS
Simbol original: SN74LS00N, LS00N,
Product Category: Logic Gates
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Product: Single-Function Gate
Logic Function: NAND
Logic Family: LS
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 16 mA
Low Level Output Current: 0.4 mA
Propagation Delay Time: 22 ns
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: NAND
Height: 4.57 mm
Input Type: TTL
Length: 19.3 mm
Logic Type: 2-Input NAND
Operating Supply Current: 22 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: TTL
Series: SN74LS00
