Pagină de start>Componente electronice active>Tranzistoare>Tranzistoare IGBT>SKM300GB12E4, IGBT, 422A, 1200V, DUAL IGBT, SEMIKRON

Mareste

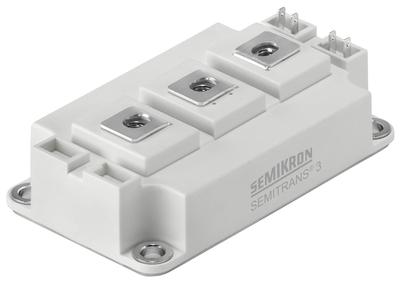

SKM300GB12E4, IGBT, 422A, 1200V, DUAL IGBT, SEMIKRON

Denumire Produs: SKM300GB12E4, SEMIKRON

COD: 74117F

Preț orientativ: 2.200,00 RON

SEMIKRON  SKM300GB12E4  IGBT Array & Module Transistor, Dual NPN, 422 A, 1.85 V, 1.2 kV, Module

The SKM300GB12E4 is a SEMITRANS® 3 IGBT Module for use with AC inverter drives and UPS. It features insulated copper base plate using DBC technology (Direct Bonded Copper) and increased power cycling capability.
  Half-bridge switch
  IGBT4 = 4th generation medium fast Trench IGBT (Infineon)
  CAL4 = Soft switching 4th generation CAL-diode
  Integrated gate resistor
  For higher switching frequencies up to 12kHz
  UL recognized, file number E63532

Transistor Polarity: Dual NPN DC
Collector Current: 422A
Collector Emitter Saturation Voltage Vce(on): 1.85V
Power Dissipation Pd: -
Collector Emitter Voltage V(br)ceo: 1.2kV
Transistor Case Style: Module
No. of Pins: - Operating Temperature Max: 125°C
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
