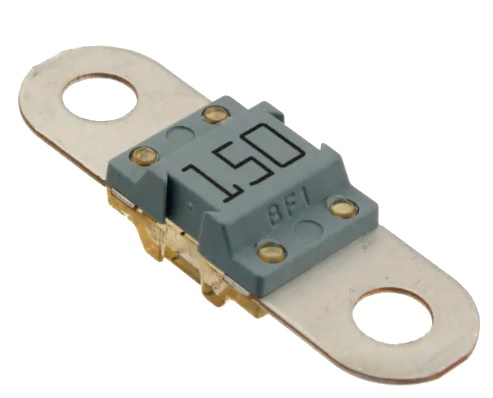

Siguranțe fuzibile, suporturi siguranțeSigurante autoSiguranta auto, 150A, 16x12.00x8.20mm, 153.5631.6151, LITTELFUSE
Siguranțe fuzibile, suporturi siguranțeSigurante autoSiguranta auto, 150A, 16x12.00x8.20mm, 153.5631.6151, LITTELFUSE
Mounting Type Bolt Mount
Fuse Type Automotive
Current Rating (Amps) 150A
Voltage Rating - DC 32V
Response Time Slow Blow
Package / Case Auto Link
Breaking Capacity @ Rated Voltage 2kA
Melting I²t 83400
Approval Agency ISO, UL
Operating Temperature -
Color Gray
Size / Dimension 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)
DC Cold Resistance 0,00029 Ohms
Operating temperature: -40 to 125 degrees C
Housing Material: PET-GF30
Clear Housing Material: PES
Terminals: Copper alloy, gal. Sn
2 x M5 or M6 bolts, distance 30 mm
Mounting Torque M5: 4.5 Nm +/- 1Nm
Mounting Torque M6: 6.0 Nm +/- 1Nm
Interrupting Rating: 1000A @ 58 VDC
Complies with: ISO 8820-5, UL 248 Special Purpose Fuses
