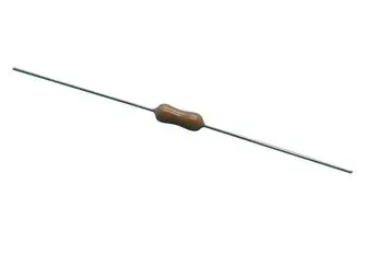

Siguranțe fuzibile, suporturi siguranțeSigurante mini 2.3x8mmSiguranta 6.3A, axial, intirziere, 5x20mm, MP007126, MULTICOMP
Siguranțe fuzibile, suporturi siguranțeSigurante mini 2.3x8mmSiguranta 6.3A, axial, intirziere, 5x20mm, MP007126, MULTICOMP
Fuse Current: 6.3A
Voltage Rating VAC: 250V
Product Range: -
Voltage Rating V DC: -
Blow Characteristic: Time Delay
Fuse Case Style: Axial Leaded
Breaking Capacity Current AC: 35A
Applications
Flat panel TVs, medical equipment, LCD monitors, lighting systems and industrial equipment
Flat panel TVs, medical equipment, LCD monitors, lighting systems and industrial equipment
Features
• Micro fuse with time-lag, low breaking capacity
• Ø2mm × 7mm physical size
• Ceramic tube, encapsulated with epoxy coating and nicked plated brass end cap
• Optional axial leads are 0.6mm × 26.5mm
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free and Halogen-free
• Designed to UL 248-14
• Micro fuse with time-lag, low breaking capacity
• Ø2mm × 7mm physical size
• Ceramic tube, encapsulated with epoxy coating and nicked plated brass end cap
• Optional axial leads are 0.6mm × 26.5mm
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free and Halogen-free
• Designed to UL 248-14
Operating Temperature : -55°C to +125°C
Storage Conditions : +10°C to +60°C
Relative Humidity : ≤ 75% yearly average without dew, maximum 30 days at 95%
Vibration Resistance : 24 cycles at 15 min. each
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
Storage Conditions : +10°C to +60°C
Relative Humidity : ≤ 75% yearly average without dew, maximum 30 days at 95%
Vibration Resistance : 24 cycles at 15 min. each
10-60Hz at 0.75mm amplitude
60-2000Hz at 10g acceleration
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
