MK471B Senzor reed; Pîntrerup:10W; max.200V; 500mA; Config.pini: NO
- REED SENSOR
- Supply Current: 250mA
- Operating Temperature Range: -20°C to +85°C
- Breakdown Voltage Vbr: 200VDC
- Contact Configuration: 1 Form A
- Contact Current AC Max: 1.5A
- Contact Current DC Max: 1.5A
- Contact Current Max: 1.5A
- Contact Material: Rhodium
- Contact Resistance: 150mohm
- Contact Type: NO
- DC Power: 10VA

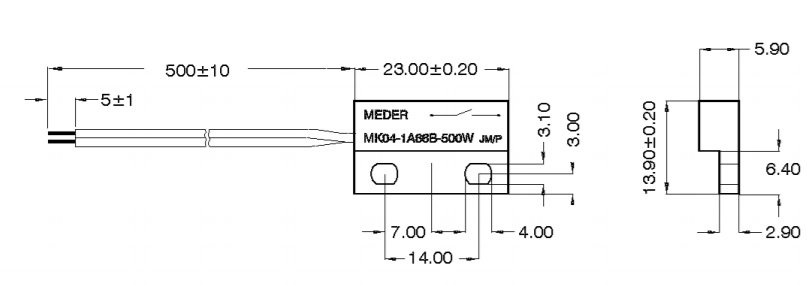

- External Depth: 13.9mm
- External Length / Height: 5.9mm
- External Width: 23mm
- Fixing Centres LxW: 14mm
- Lead Length: 500mm
- Mounting Type: Flange
- Off Switching Time: 0.1 ms
- On Switching Time: 0.5 ms
- Operating Temperature Max: 85°C
- Operating Temperature Min: -20°C
- Sensing Distance Max: 15mm
- Sensing Distance Min: 10mm
- Sensing Range: 10mm to 15mm
- Series: MK
- Switching Current AC Max: 0.5A
- Switching Current DC Max: 0.5A
- Switching Voltage: 200V
- Switching Voltage AC / DC Max: 180VDC
- Switching Voltage Max: 180V
- Terminal Type: Solder
