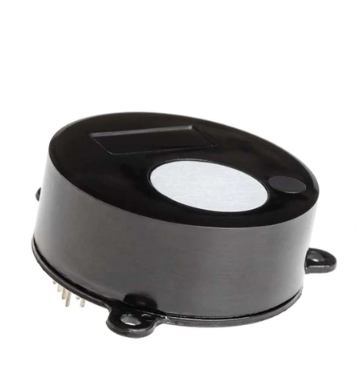

SenzoriSenzori de gazSenzor gaz, CO2, 0-2000ppm, iesire analogica, serial, COZIR-A-X-2000, Gas Sensing Solutions Ltd.
SenzoriSenzori de gazSenzor gaz, CO2, 0-2000ppm, iesire analogica, serial, COZIR-A-X-2000, Gas Sensing Solutions Ltd.
sensing Method: NDIR with Gold-plated optics
Sample Method: Diffusion (Optional Sampling with Tube Cap)
Measurement Range: 0-2,000 ppm (parts per million)
Measurement Rate: 0.5 sec / measurement
Accuracy: ±50 ppm ± 3% of reading
Resolution: 1ppm
Pressure Dependence: 0.13% of reading per mm Hg
Noise measurement: < 10 ppm
Auto Calibration Default (can be changed in software)
Serial communication 9600/ 8/ 1/ n
Analog voltage output proportional to CO2 concentration
Sensor Life Expectancy: > 15 years
General Performance
Warm-up Time: < 10 seconds (1.2s to first reading)
Operating Conditions: 0°C to 50°C, 0-95% RH, 500 mbar to 40 bar
Electrical/Mechanical
Power Input: 3.3-5.5VDC (3.3V recommended)
Average Power Requirements: < 1.5mA @ 3.3V
Peak current: 33mA
