Componente pentru automatizări și controlRegulatoare de nivelSenzori de nivel, debitmetreSenzor de nivel, uleiuri, acizii, alcool, 250VAC/1A, polyamide, LS303-51N
Furnizor: GENTECH INTERNATIONAL

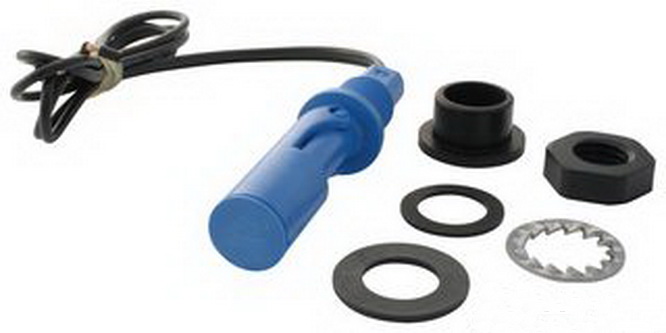

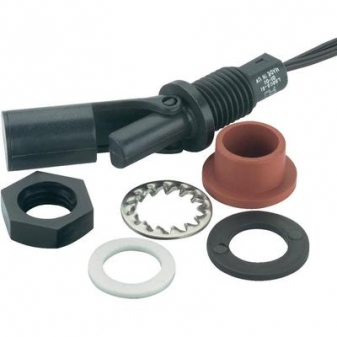

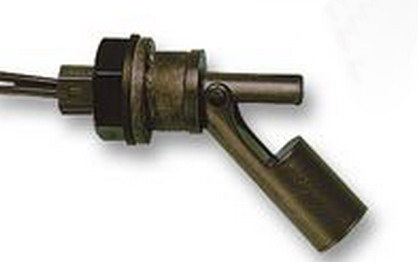

LS303-51N
Rezistent la acizi si baze anorganice slabe, alcooluri, uleiuri si solutii de curatare pana la 100 C. Functiile inchidere/deschidere posibile printr-o rotire cu 180
RoHS : Da
Descriere
FLOAT SWITCH, HORIZ
Lead Length:500mm
Approval Bodies:UL
Colour:Blue
Contact Configuration:Form A
Contact Current AC Max:1A
Contact Current Max:1A
Contact Material:Ruthenium
Contact Voltage AC Max:250V
External Length / Height:87.9m
Float Diameter:17.3m
Length:51.59mm
Material:Nylon 6.6
Max Switching Voltage AC / DC:100V DC
Min Specific Gravity of Liquid:0.85
Switching Voltage AC / DC:250V AC
Operating Temperature Max:110C
Power Rating:15W
Pressure bar Max:4bar
Series:LS
Switch Operation:SPST
Temperature Operating Min:-30C
Thread Size:M16
