Pagină de start>Componente pentru automatizări și control>Regulatoare de nivel>Senzori de nivel, debitmetre>Senzor de nivel, 250VAC, 1A, SPST, NO sau NC, FLCS-01, GENTECH INTERNATIONAL UK

Mareste

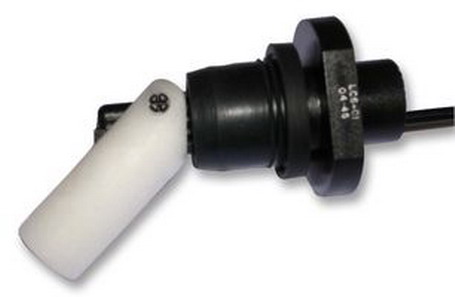

Senzor de nivel, 250VAC, 1A, SPST, NO sau NC, FLCS-01, GENTECH INTERNATIONAL UK

Denumire Produs: FLCS-01, GENTECH INTERNATIONAL UK

COD: 45001

Preț orientativ: 168,21 RON

Furnizor: GENTECH INTERNATIONAL UK

NO sau NC, in functie de pozitia flotorului .

RoHS :  Da
Descriere

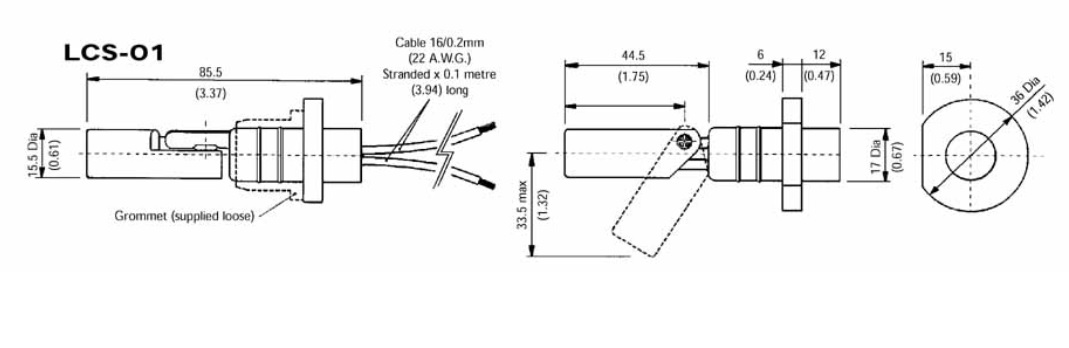

FLOAT SWITCH, HORIZ
Lead Length: 0.1m
Contact Configuration:SPST
External Length / Height:85.5mm
Fixing Hole Diameter:20.5mm
Float Diameter:15.5mm
Material:Acetal Copolymer (Housing), Foamed Polypropylene (Float Material)
Max Contact Current:1A
Max Contact Current AC:1A
Max Contact Voltage AC:250V
Max Operating Temperature:60C
Max Switching Voltage AC / DC:250V ac
Min Specific Gravity of Liquid:0.80
Min Switching Voltage AC / DC:100V dc
Min Temperature Operating:-30C
Power Rating:15W
Series:LCS


The LCS series compact Liquid Level Sensor made of acetal housing and polypropylene float.
The sensor features horizontal side entry, normally open or normally closed by float rotation,
EPDM sealing grommet and flying leads for interconnection. It is suitable for use with the high or low level water, un-pressurised central heating systems, fuel low level, drinking water level and organic solvents.

    Rapid push fit installation
    Reed-switch reliability
    60°C Temperature range

Aplicaţii

Sensing & Instrumentation



ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
