Furnizor:LEM

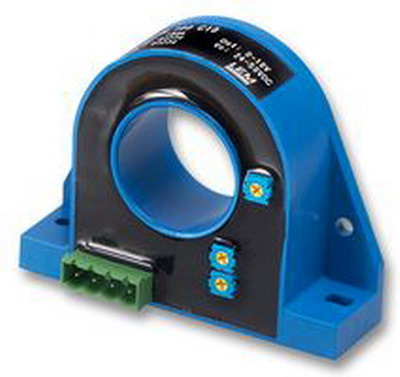

DHR 400 C10

 RoHS :   Da
Descriere
CURRENT TRANSDUCER, 400A, 0-10V O/P
 Operating Frequency Range:DC to 6kHz
 Supply Voltage Range DC:20V to 50V
 Sensor Output:Voltage
 Accuracy:1%
 Response Time:150ms
 Current Consumption:30mA
 Current Range AC:400A
 Current Range DC:400A
 Frequency Max:6kHz
 Output Type:True RMS
 Supply Voltage DC Max:50VDC
 Accuracy %:1%
 Conductor Diameter Max:32mm
 Current Max:1000A
 External Depth:25mm
 External Length / Height:70mm
 External Width:90mm
 Fixing Hole Diameter:4.6mm
 Flammability Rating:UL94V-0
 Frequency Min:20Hz
 IP/NEMA Rating:IP20
 Load Current Max:30mA
 Operating Temperature Max:70C
 Operating Temperature Min:-40C
 Output Voltage:10VDC
 Output Voltage Min:0VDC
 Series:DHR-C10
 Supply Current:30mA
 Supply Voltage DC Min:20VDC
 Transducer Function:AC/DC Current Transducer
