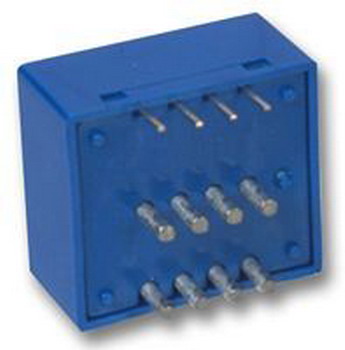

Senzor curent, 0-20A, VOLTAGE OUT, HXS20-NP, LEM

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: LEM

HXS 20-NP

RoHS : Da
Descriere
CURRENT TRANSDUCER
DC Current Measuring Ranges:DC, AC, Pulsed, Mixed
AC Current Measuring Ranges:DC, AC, Pulsed, Mixed
Operating Frequency Range:DC to 50kHz
Sensor Output:Voltage
Accuracy:1%
Response Time:5µs
SVHC:No SVHC
Current Consumption:22mA
Max Frequency:50kHz
Current Rating:20A
External Depth:18.5mm
External Length / Height:10mm
External Width:16.5mm
Linearity:± 0.5%
Max Operating Temperature:85C
Min Frequency:0Hz
Min Temperature Operating:-40C
Percentage Accuracy:1%
Series:HSX 20
Standard:EN 50178(97-10-01)
Supply Voltage:+5V
Transducer Function:Electronic Measurement of Currents
Weight:10g
